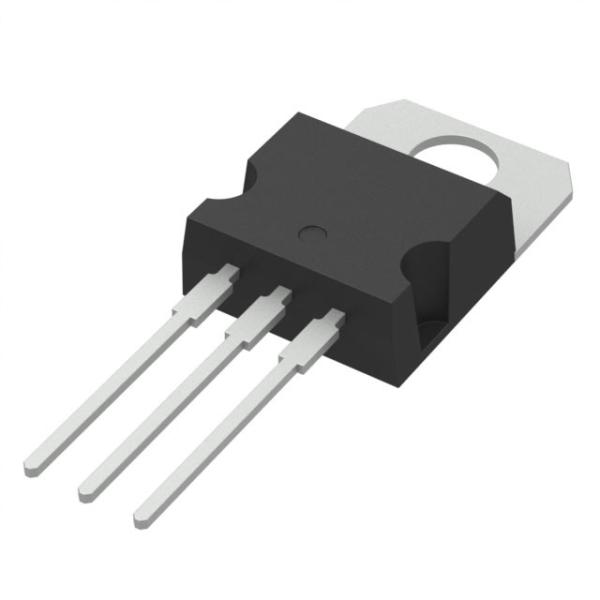

NEW & ORIGINAL NPN/PNP PLASTIC POWER TRANSISTORS BDX34C
NEW & ORIGINAL NPN/PNP PLASTIC POWER TRANSISTORS BDX34C
Specifications
Model Number :
BDX34C
Certification :
new & original
Place of Origin :
original factory
MOQ :
20pcs
Price :
Negotiate
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
8600pcs
Delivery Time :
1 day
Packaging Details :
Please contact me for details
Description :
Bipolar (BJT) Transistor PNP - DarliCM GROUPon 100 V 10 A 70 W Through Hole TO-220
Package :
TO-220 Plastic Package
Collector -Emitter Voltage :
100 V
Collector -Base Voltage :
100 V
Breakdown (sus) Voltage :
<0.5 mA
Transition Frequency :
3.0 MHZ (MIN)
Saturation Voltage :
<2.5 V
Description

NPN/PNP PLASTIC POWER TRANSISTORS

BDX33, 33A, 33B, 33C, 33D

BDX34, 34A, 34B, 34C, 34D

TO-220 Plastic Package

Power DarliCM GROUPon for Linear Switchilng Application

ABSOLUTE MAXIMUM RATINGS

DESCRIPTION SYMBOL

BDX33

BDX34

BDX33A

BDX34A

BDX33B

BDX34B

BDX33C

BDX34C

BDX33D

BDX34D

 UNIT
Collector -Emitter Voltage VCEO 45 60 80 100 120 V
Collector -Base Voltage VCBO 45 60 80 100 120 V
Emitter -Base Voltage VEBO 5.0 V

Collector Current -

Continuous

Peak

IC

ICM

10

15

A

A
Base Current IB 0.25 A

Device Dissipation

@ Tc=25ºC

 PD 70 W
Derate Above 25ºC 0.56 W/ºC

Operating And Storage

Junction

 Tj , Tstg -65 to +150 ºC
Temperature Range THERMAL RESISTANCE Junction to Case Rth(j-c) 1.78 ºC/W

TO-220 Plastic Package

Pin Configuration

1. Base

2. Collector

3. Emitter

4. Collector

TO-220 Tube Packing
