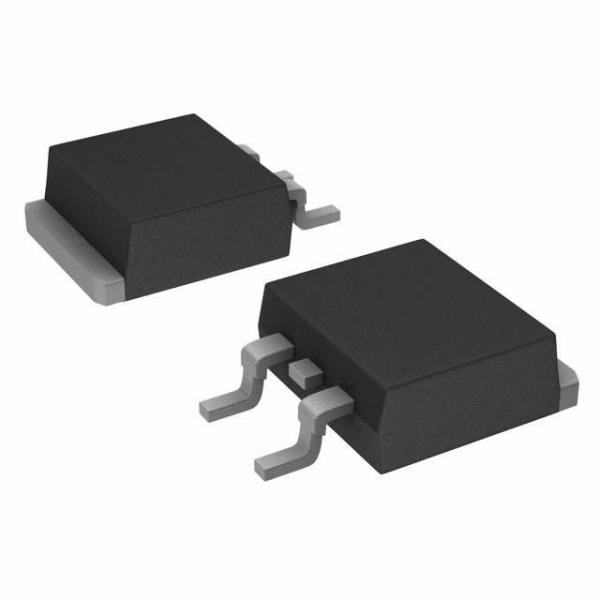

L7812CD2T-TR Power Mosfet Transistor Positive voltage regulators new & original
L7812CD2T-TR Power Mosfet Transistor Positive voltage regulators new & original
L7812CD2T-TR Power Mosfet Transistor Positive voltage regulators new & original
L7812CD2T-TR Power Mosfet Transistor Positive voltage regulators new & original
Specifications
Model Number :
L7812CD2T-TR
Certification :
new & original
Place of Origin :
original factory
MOQ :
10pcs
Price :
Negotiate
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
10000pcs
Delivery Time :
1 day
Packaging Details :
Please contact me for details
Description :
Linear Voltage Regulator IC Positive Fixed 1 Output 1.5A D2PAK
Output voltage :
12 V
Quiescent current :
6 mA
Output voltage drift :
1.5 mV/°C
Output noise voltage :
40 µV/Vo
Supply voltage rejection :
61 dB
Output resistance :
18 mΩ
Description

L78xx

L78xxC

Positive voltage regulators

Features

■ Output current to 1.5 A

■ Output voltages of 5; 6; 8; 8.5; 9; 12; 15; 18; 24 V

■ Thermal overload protection

■ Short circuit protection

■ Output transition SOA protection

Description

The L78xx series of three-terminal positive regulators is available in TO-220, TO-220FP, TO-3, D2PAK and DPAK packages and several fixed output voltages, making it useful in a wide range of applications. These regulators can provide local on-card regulation, eliminating the distribution problems associated with single point regulation. Each type employs internal current limiting, thermal shut-down and safe area protection, making it essentially indestructible. If adequate heat sinking is provided, they can deliver over 1 A output current. Although designed primarily as fixed voltage regulators, these devices can be used with external components to obtain adjustable voltage and currents.

Block diagram

Pin connections (top view)

Schematic diagram

Absolute maximum ratings

Symbol Parameter Value Unit
VI DC input voltage for VO= 5 to 18 V 35 V
for VO= 20, 24 V 40
IO Output current Internally limited
PD Power dissipation Internally limited
TSTG Storage temperature range -65 to 150 °C
TOP Operating junction temperature range for L7800 -55 to 150 °C
for L7800C 0 to 150 °C

Note: Absolute maximum ratings are those values beyond which damage to the device may occur. Functional operation under these condition is not implied.
