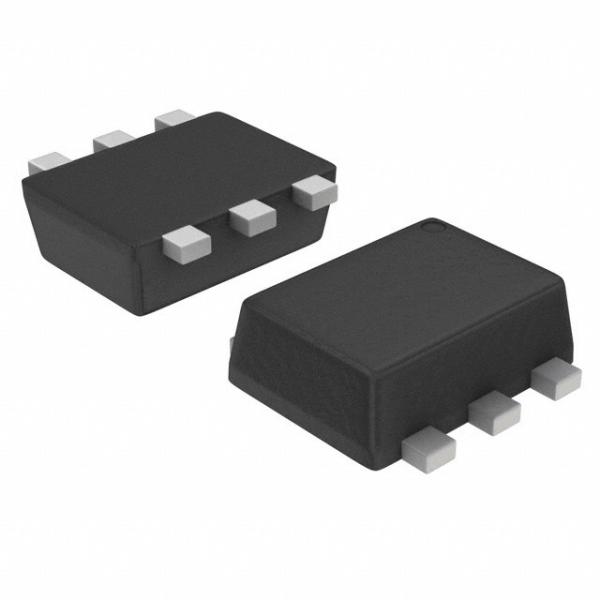

EMD3T2R Power Mosfet Module Transistor General purpose ( Dual Digital Transistors )
EMD3T2R Power Mosfet Module Transistor General purpose ( Dual Digital Transistors )
Specifications
Model Number :
EMD3T2R
Certification :
new & original
Place of Origin :
original factory
MOQ :
20pcs
Price :
Negotiate
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
9000pcs
Delivery Time :
1 day
Packaging Details :
Please contact me for details
Description :
TRANS PREBIAS NPN/PNP 50V SOT563
Supply voltage :
50 V
Junction temperature :
150 ˚C
Storage temperature :
−55∼+150 ˚C
Output voltage :
0.1 V
Input current :
0.88 mA
Output current :
0.5 µA
Description

General purpose (dual digital transistors)

EMD3 / UMD3N / IMD3A

Features

1) Both the DTA114E chip and DTC114E chip in a EMT or UMT or SMT package.

2) Mounting possible with EMT3 or UMT3 or SMT3 automatic mounting machines.

3) Transistor elements are independent, eliminating interference.

4) Mounting cost and area can be cut in half.

Structure

Epitaxial planar type

NPN / PNP silicon transistor (Built-in resistor type)

The following characteristics apply to both the DTr1 and DTr2, however, the “−” sign on DTr2 values for the PNP type have been omitted.

Absolute maximum ratings (Ta=25°C)

Parameter Symbol Limits Unit
Supply voltage VCC 50 V
Input voltage VIN -10 V
40
Output current IO 50 mA
IC (Max.) 100
Power dissipation EMD3, UMD3N Pd 150 (TOTAL) *1

mW

IMD3A 300 (TOTAL) *2
Junction temperature Tj 150 ˚C
Storage temperature Tstg −55 to +150 ˚C

*1 120mW per element must not be exceeded.

*2 200mW per element must not be exceeded.

Equivalent circuits

External dimensions (Unit : mm)

Stock Offer (Hot Sell)

Part No. Quantity Brand D/C Package
UA78L05ACLPR 82000 TI 06+ TO-92
UA78M05CDCYR 11061 TI 07+ SOT-223
UA78M33CDCYR 17309 TI 13+ SOT-223
UA78M33CKCS 4740 TI 15+ TO-220
UBA3070T 4247 13+ SOP-8
UBA3070T/N1 4711 13+ SOP-8
UC28023DW 11337 TI 16+ SOP-16
UC28023DWR 3343 TI 14+ SOP-16
UC2823ADWTR 4921 TI 01+ SOP-16
UC2842AN 17301 TI 15+ DIP-8
UC2844BNG 9160 ON 13+ DIP-8
UC2845AN 7847 TI 13+ DIP-8
UC2854DWTR 7462 TI 00+ SOP-16
UC3708N 2716 TI 09+ DIP-8
UC3717AN 2833 TI 12+ DIP-16
UC3825ADWTR 3255 TI 13+ SOP-16
UC3825AN 2738 TI 14+ DIP-16
UC3843AN 68000 ON 14+ DIP-8
UC3843D8TR 7582 TI 11+ SOP-8
UC3844BN 84000 ON 15+ DIP-8
UC3844BNG 8876 ON 15+ DIP-8
UC3845BN 45000 ST 15+ DIP-8
UCC25600DR 6296 TI 15+ SOP-8
UCC27324DR 4383 TI 15+ SOP-8
UCC27524DR 5081 TI 13+ SOP-8
UCC28513DW 3596 TI 16+ SOP-20
UCC3808DTR-2 2265 TI 01+ SOP-8
UCLAMP1211P.TCT 14000 SEMTECH 16+ SLP100
UCN5810AF 8046 ALLEGRO 14+ DIP-18
UDN2585A 3967 ALLEGRO 14+ DIP-18
