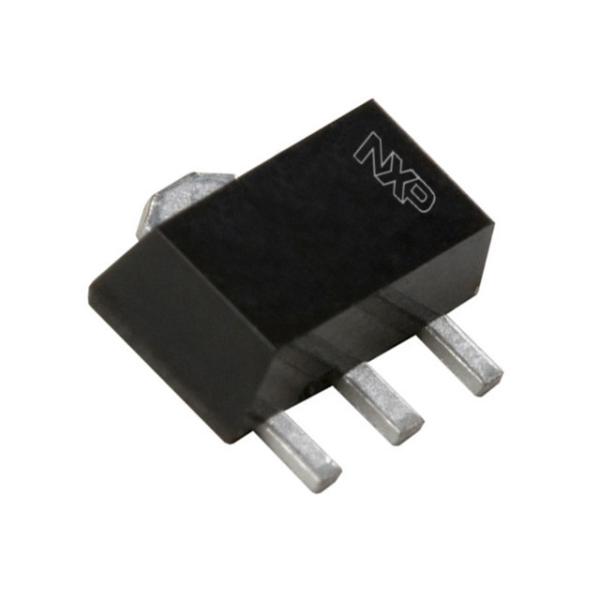

BCX56-16,147 Power Mosfet IC Transistor NPN SILICON PLANAR MEDIUM POWER TRANSISTORS
BCX56-16,147 Power Mosfet IC Transistor NPN SILICON PLANAR MEDIUM POWER TRANSISTORS
Specifications
Model Number :
BCX56
Certification :
new & original
Place of Origin :
original factory
MOQ :
10PCS
Price :
Negotiate
Payment Terms :
T/T, Western Union, MoneyGram Paypal
Supply Ability :
3000pcs/week
Packaging Details :
Please contact me for details
Description :
Bipolar (BJT) Transistor NPN 80 V 1 A 180MHz 1.25 W Surface Mount SOT-89
Collector-Base Voltage :
100V
Collector-Emitter Voltage :
80V
Emitter-Base Voltage :
5V
Peak Pulse Current :
2A
Continuous Collector Current :
1A
Operating and Storage Temperature Range :
-65 to +150
Description
SOT89 NPN SILICON PLANAR MEDIUM POWER TRANSISTORS BCX56

DESCRIPTION

Collector-Base Voltage:100V

Collector-Emitter Voltage:80V

Emitter-Base Voltage:5V

Peak Pulse Current:2A

Continuous Collector Current:1A

Power Dissipation at Tamb=25°C:1W

Operating and Storage Temperature Range:65 to +150°C

APPLICATIONS

ABSOLUTE MAXIMUM RATINGS.
PARAMETER SYMBOL BCX54 BCX55 BCX56 UNIT
Collector-Base Voltage VCBO 45 60 100 V
Collector-Emitter Voltage VCEO 45 60 80 V
Emitter-Base Voltage VEBO 5 V
Peak Pulse Current ICM 2 A
Continuous Collector Current IC 1 A
Power Dissipation at Tamb=25°C Ptot 1 W
Operating and Storage Temperature Range Tj:Tstg -65 to +150 °C
