Specifications
Brand Name :
ONSEMI
Model Number :
BSS138LT1G
Certification :
Original Factory Pack
Place of Origin :
Original
MOQ :
20pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union,PayPal
Supply Ability :
5200PCS
Delivery Time :
1 Day
Packaging Details :
please contact me for details
Description :
N-Channel 50 V 200mA (Ta) 225mW (Ta) Surface Mount SOT-23-3 (TO-236)
VDSS :
50 Vdc
VGS :
± 20 Vdc
I D :
200 mA
PD :
225 mW
TL :
260 °C
Description

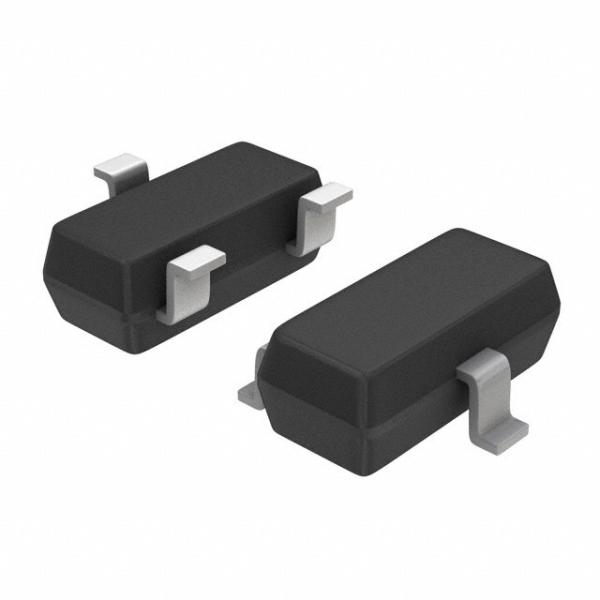

Power MOSFET 200 mA, 50 V N−Channel SOT−23

Typical applications are DC−DC converters, power management in portable and battery−powered products such as computers, printers, PCMCIA cards, cellular and cordless telephones.

Features

• Pb−Free Packages are Available

• Low Threshold Voltage (VGS(th):

0.5 V−1.5 V) Makes it Ideal for Low Voltage Applications

• Miniature SOT−23 Surface Mount Package Saves Board Space

NOTES:

1. DIMENSIONING AND TOLERANCING PER ANSI Y14.5M, 1982.

2. CONTROLLING DIMENSION: INCH.

3. MAXIMUM LEAD THICKNESS INCLUDES LEAD FINISH THICKNESS. MINIMUM LEAD THICKNESS IS THE MINIMUM THICKNESS OF BASE MATERIAL.

4. 318−03 AND −07 OBSOLETE, NEW STANDARD 318−08.

MAXIMUM RATINGS (TA = 25°C unless otherwise noted)


Rating Symbol Value Unit
Drain−to−Source Voltage VDSS 50 Vdc
Gate−to−Source Voltage − Continuous VGS ± 20 Vdc
Total Power Dissipation @ TA = 25°C PD 225 mW
Operating and Storage Temperature Range TJ, Tstg − 55 to 150 °C
Thermal Resistance − Junction−to−Ambient RJA 556 °C/W
Maximum Lead Temperature for Soldering Purposes, for 10 seconds TL 260 °C
