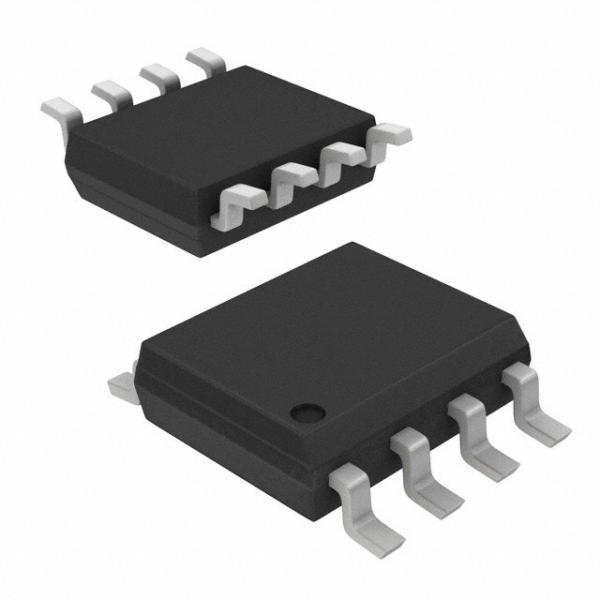

FDS5690 60V Trench Power Mosfet Transistor , smd linear power mosfet
FDS5690 60V Trench Power Mosfet Transistor , smd linear power mosfet
Specifications
Brand Name :
FAIRCHILD
Model Number :
FDS5690
Certification :
Original Factory Pack
Place of Origin :
Original
MOQ :
5pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union,PayPal
Supply Ability :
290PCS
Delivery Time :
1 Day
Packaging Details :
please contact me for details
Description :
N-Channel 60 V 7A (Ta) 2.5W (Ta) Surface Mount 8-SOIC
Drain-Source Voltage :
60 V
Gate-Source Voltage :
±20 V
Drain Current - Continuous :
7 A
Power Dissipation for Single Operation :
2.5 W
Operating and Storage Junction Temperature Range :
-55 to +150 °C
Description

FDS5690 60V N-Channel PowerTrench MOSFET smd power mosfet linear power mosfet

Features

• 7 A, 60 V.

RDS(on) = 0.028 Ω @ VGS = 10 V

RDS(on) = 0.033 Ω @ VGS = 6 V.

• Low gate charge (23nC typical).

• Fast switching speed.

• High performance trench technology for extremely low RDS(ON).

• High power and current handling capability

General Description

This N-Channel MOSFET is produced using Fairchild Semiconductor's advanced PowerTrench process that has been especially tailored to minimize on-state resistance and yet maintain superior switching performance.

These devices are well suited for low voltage and battery powered applications where low in-line power loss and fast switching are required.

Applications

• DC/DC converter

• Motor drives

Typical Characteristics
