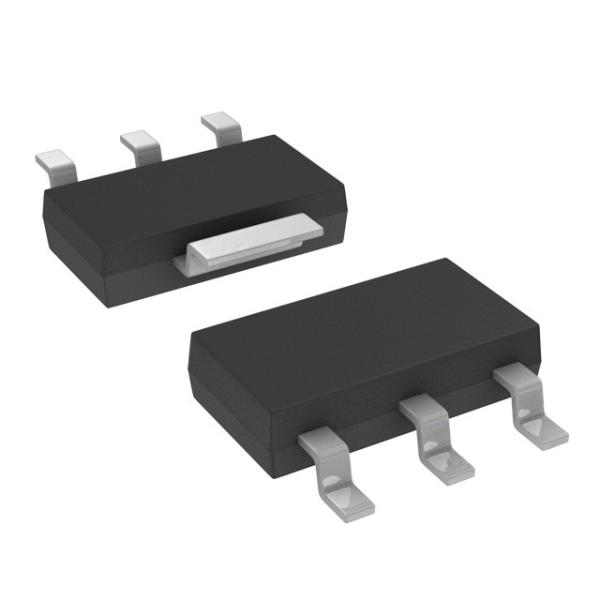

NDT456P Power Mosfet Transistor P-Channel Field Effect Transistor
NDT456P Power Mosfet Transistor P-Channel Field Effect Transistor
Specifications
Model Number :
NDT456P
Certification :
new & original
Place of Origin :
original factory
MOQ :
20pcs
Price :
Negotiate
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
6900pcs
Delivery Time :
1 day
Packaging Details :
Please contact me for details
Description :
P-Channel 30 V 7.5A (Ta) 3W (Ta) Surface Mount SOT-223-4
Drain-Source Voltage :
-30 V
Gate-Source Voltage :
±20 V
Operating and Storage Temperature :
-65 to 150 °C
Package :
SOT-223
Description

NDT456P P-Channel Enhancement Mode Field Effect Transistor

General Description

Power SOT P-Channel enhancement mode power field effect transistors are produced using Fairchild's proprietary, high cell density, DMOS technology. This very high density process is especially tailored to minimize on-state resistance and provide superior switching performance. These devices are particularly suited for low voltage applications such as notebook computer power management, battery powered circuits, and DC motor control.

Features

  • -7.5 A, -30 V. RDS(ON) = 0.030 W @ VGS = -10 V
  • RDS(ON) = 0.045 W @ VGS = -4.5 V.
  • High density cell design for extremely low RDS(ON).
  • High power and current handling capability in a widely used surface mount package.

Absolute Maximum Ratings TA = 25°C unless otherwise noted

Symbol Parameter NDT456P Units
VDSS Drain-Source Voltage -30 V
VGSS Gate-Source Voltage ±20 V
ID

Drain Current - Continuous (Note 1a)

- Pulsed

 ±7.5 A
±20 A
PD

Maximum Power Dissipation (Note 1a)

(Note 1b)

(Note 1c)

 3 W
1.3 W
1.1 W
TJ ,TSTG Operating and Storage Temperature Range -65 to 150 °C
