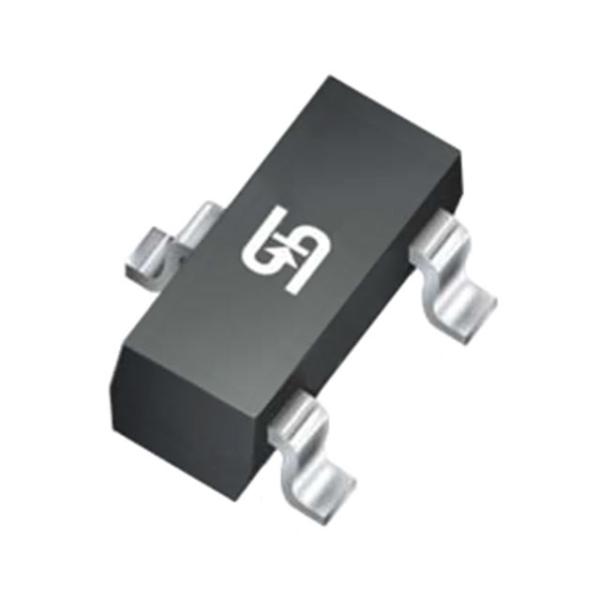

BC807-25 Power Mosfet Transistor PNP general purpose transistor
BC807-25 Power Mosfet Transistor PNP general purpose transistor
Specifications
Model Number :
BC807-25
Certification :
new & original
Place of Origin :
original factory
MOQ :
10pcs
Price :
Negotiate
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
7800pcs
Delivery Time :
1 day
Packaging Details :
Please contact me for details
Description :
Bipolar (BJT) Transistor PNP 45 V 500 mA 100MHz 300 mW Surface Mount SOT-23
collector-base voltage :
−50 V
collector-emitter voltage :
−45 V
emitter-base voltage :
−5 V
collector current (DC) :
−500 mA
peak base current :
−200 mA
total power dissipation :
250 mW
Description

Stock Offer (Hot Sell)

Part no. Quantity Brand D/C Package
5M0380R 2882 FSC 14+ TO-220
AT24C04 2882 ATMEL 14+ SOP8
HT1381 2882 HOLTEK 14+ SOP8
L293E 2887 ST 16+ DIP
BZX84B5V1 2888 ON 16+ SOT-23
TLP523-4 2888 TOSHIBA 13+ DIP-16
TPS63020DSJR 2888 TI 15+ QFN
KBP210 2896 SEP 16+ DIP
MP1542DK-LF-Z 2900 MPS 16+ MSOP8
STU3030 2900 SAMHOP 14+ TO-252
IRS2092S 2978 IR 14+ SOP16
SMBJ36A 2980 VISHAY 14+ DO-214AA
A6259 2988 SANKEN 16+ DIP
IRF7309TRPBF 2990 IR 16+ SOP8
PIC16F877-20I/L 2990 MICROCHIP 13+ PLCC44
IRFBE30P 2997 IR 15+ TO-220
MUR1640CT 2998 ON 16+ TO-220
1.5KE15A 3000 VISHAY 16+ DO-201AD
1.5KE6.8CA 3000 VISHAY 14+ DO-201AD
1N5359B 3000 ON 14+ DO-27
1N5819HW-7-F 3000 DIODES 14+ SOD-123
2N7002W-7-F 3000 DIODES 16+ SOT-323
74HC1G04GW 3000 16+ SOT-353
BD136 3000 ST 13+ TO-126
BF620 3000 15+ SOT-89
BZD27C13 3000 VISHAY 16+ SOD123
BZX84-C12 3000 16+ SOT23
CAT810LTBI 3000 ON 14+ SOT23-3
DF01S 3000 VISHAY 14+ SOP4
DTC124EU 3000 ROHM 14+ SOT323


BC807 PNP general purpose transistor

FEATURES
• High current (max. 500 mA)
• Low voltage (max. 45 V).

APPLICATIONS
• General purpose switching and amplification.

Fig.1 Simplified outline (SOT23) and symbol.
DESCRIPTION
PNP transistor in a SOT23 plastic package.
NPN complements: BC817.

PINNING

PIN DESCRIPTION
1 base
2 emitter
3 collector


LIMITING VALUES
In accordance with the Absolute Maximum Rating System (IEC 134).

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
VCBO collector-base voltage open emitter − −50 V
VCEO collector-emitter voltage open base; IC = −10 mA − −45 V
VEBO emitter-base voltage open collector − −5 V
IC collector current (DC) − −500 mA
ICM peak collector current − −1 A
IBM peak base current − −200 mA
Ptot total power dissipation Tamb ≤ 25 °C; note 1 − 250 mW
Tstg storage temperature −65 +150 °C
Tj junction temperature − 150 °C
Tamb operating ambient temperature −65 +150 °C

Note 1. Transistor mounted on an FR4 printed-circuit board.

PACKAGE OUTLINE

Plastic surface mounted package; 3 leads SOT23
