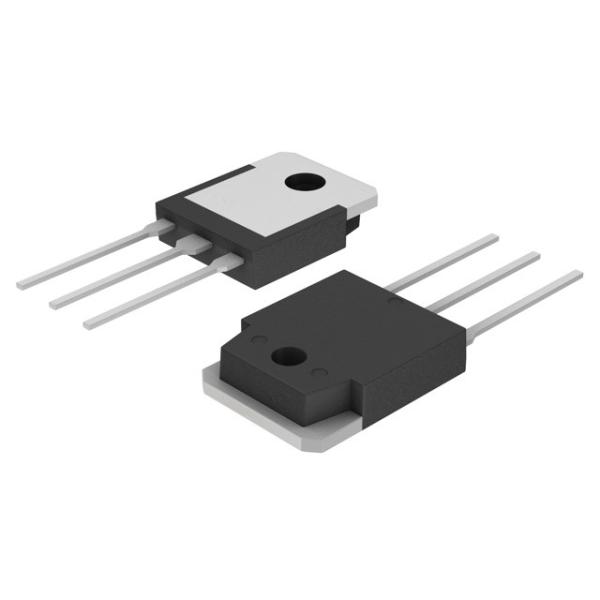

NJW0302G Complementary switching Power Mosfet Transistor , NPN - PNP Power Bipolar Transistors
NJW0302G Complementary switching Power Mosfet Transistor , NPN - PNP Power Bipolar Transistors
Specifications
Brand Name :
ONSEMI
Model Number :
NJW0302G
Certification :
Original Factory Pack
Place of Origin :
Japan
MOQ :
50pcs
Price :
negotiation
Payment Terms :
T/T, Western Union,PayPal
Supply Ability :
5200PCS
Delivery Time :
1 day
Packaging Details :
please contact me for details
Description :
Bipolar (BJT) Transistor PNP 250 V 15 A 30MHz 150 W Through Hole TO-3P-3L
VCEO :
250 Vdc
VCBO :
250 Vdc
VEBO :
5.0 Vdc
VCEX :
250 Vdc
IC :
15 30 Adc
Description

Complementary NPN-PNP Power Bipolar Transistors

These complementary devices are lower power versions of the popular NJW3281G and NJW1302G audio output transistors. With superior gain linearity and safe operating area performance, these transistors are ideal for high fidelity audio amplifier output stages and other linear applications.

Features

•Exceptional Safe Operating Area

•NPN/PNP Gain Matching within 10% from 50 mA to 3 A

•Excellent Gain Linearity

•High BVCEO

•High Frequency

•These are Pb-Free Devices Bene

Benefits

•Reliable Performance at Higher Powers

•Symmetrical Characteristics in Complementary Configurations •Accurate Reproduction of Input Signal

•Greater Dynamic Range

•High Amplifier Bandwith App

MAXIMUM RATINGS

Rating Symbol Value Unit
Collector-Emitter Voltage VCEO 250 Vdc
Collector-Base Voltage VCBO 250 Vdc
Emitter-Base Voltage VEBO 5.0 Vdc
Collector-Emitter Voltage - 1.5 V VCEX 250 Vdc
