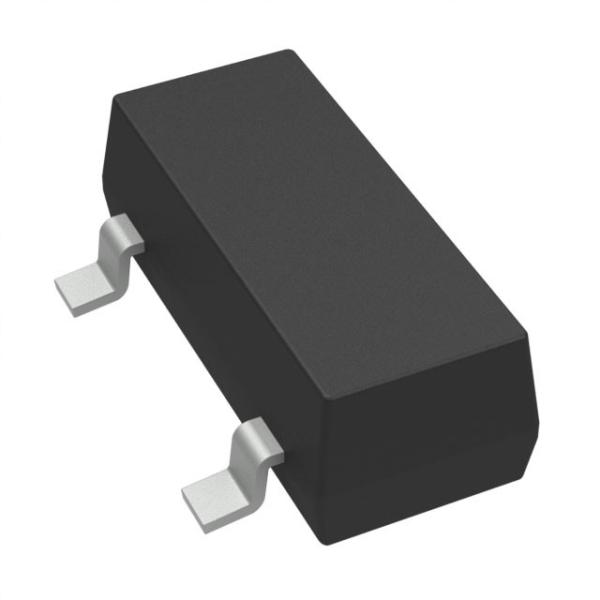

LM385M3-2.5 Micropower Voltage Reference Diode IC Chip power ic chip
LM385M3-2.5 Micropower Voltage Reference Diode IC Chip power ic chip
LM385M3-2.5 Micropower Voltage Reference Diode IC Chip power ic chip
LM385M3-2.5 Micropower Voltage Reference Diode IC Chip power ic chip
Specifications
Brand Name :
TI
Model Number :
LM385M3-2.5
Certification :
Original Factory Pack
Place of Origin :
Thailand
MOQ :
50pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union,PayPal
Supply Ability :
21600PCS
Delivery Time :
1 Day
Packaging Details :
SOT-23/REEL
Description :
Shunt Voltage Reference IC Fixed 2.5V V ±3% 20 mA SOT-23-3
Temperature Range :
–55°C to +150°C
Payment Term :
T/T, Paypal, Western Union
Voltage :
95V
Current :
20mA to 30A
Package :
SOT-23
Factory Package :
REEL
Description

LM185-2.5/LM285-2.5/LM385-2.5 Micropower Voltage Reference Diode
General Description
The LM185-2.5/LM285-2.5/LM385-2.5 are micropower 2-terminal band-gap voltage regulator diodes. Operating over a 20 µA to 20 mA current range, they feature exceptionally low dynamic impedance and good temperature stability.

On-chip trimming is used to provide tight voltage tolerance. Since the LM-185-2.5 band-gap reference uses only transistors and resistors, low noise and good long term stability result. Careful design of the LM185-2.5 has made the device exceptionally tolerant of capacitive loading, making it easy to use in almost any reference application.

The wide dynamic operating range allows its use with widely varying supplies with excellent regulation. The extremely low power drain of the LM185-2.5 makes it useful for micropower circuitry. This voltage reference can be used to make portable meters, regulators or general purpose analog circuitry with battery life approaching shelf life.

Further, the wide operating current allows it to replace older references with a tighter tolerance part. For applications requiring 1.2V see LM185-1.2. The LM185-2.5 is rated for operation over a −55˚C to 125˚C temperature range while the LM285-2.5 is rated −40˚C to 85˚C and the LM385-2.5 0˚C to 70˚C.

The LM185-2.5/ LM285-2.5 are available in a hermetic TO-46 package and the LM285-2.5/LM385-2.5 are also available in a low-cost TO-92 molded package, as well as S.O. and SOT-23. The LM185-2.5 is also available in a hermetic leadless chip carrier package.

Features
n ±20 mV (±0.8%) max. initial tolerance (A grade)
n Operating current of 20 µA to 20 mA
n 0.6Ω dynamic impedance (A grade)
n Low temperature coefficient
n Low voltage reference — 2.5V
n 1.2V device and adjustable device also available
— LM185-1.2 series and LM185 series, respectively
ABSOLUTE MAXIMUM RATINGS(1)

Reverse Current 30 mA
Forward Current 10 mA
Operating Temperature Range (Note 3) LM185-2.5 −55˚C to + 125˚C
LM285-2.5 −40˚C to + 85˚C
LM385-2.5 0˚C to 70˚C
Storage Temperature −55˚C to + 150˚C
TO-92 Package (10 sec.) 260˚C
TO-46 Package (10 sec.) 300˚C
SO and SOT Package Vapor Phase (60 sec.) 215˚C
Infrared (15 sec.) 220˚C


TRANS BC847BLT118000ONCHINA
RC0805JR-0710KL35000YAGEOCHINA
RC0805JR-071KL20000YAGEOCHINA
DIODO DF06S3000SEPCHINA
CAP 0805 330NF 100V C2012X7S2A334K125AB20000TDKJAPAN
DIODO US1A-13-F50000DIODESMALAYSIA
INDUTOR. 100UH SLF7045T-101MR50-PF10000TDKJAPAN
RES 470R 5% RC0805JR-07470RL500000YAGEOCHINA
RES 1206 2M 1% RC1206FR-072ML500000YAGEOCHINA
DIODO P6KE180A10000VISHAYMALAYSIA
RES 1206 470R 5% RC1206JR-07470RL500000YAGEOCHINA
DIODO UF4007 AMMO500000MICCHINA
TRANS. ZXMN10A09KTC20000ZETEXTAIWAN
RES 0805 4K7 5%
RC0805JR-074K7L		500000YAGEOCHINA
ACOPLADOR OTICO. MOC3021S-TA110000LITE-ONTAIWAN
TRANS MMBT2907A-7-F30000DIODESMALAYSIA
TRANS STGW20NC60VD1000STMALAYSIA
C.I LM2576HVT-ADJ/NOPB500TITHAILAND
C.I MC33298DW1000MOTMALAYSIA
C.I MC908MR16CFUE840FREESCALMALAYSIA
C.I P8255A54500INTELJAPAN
C.I HM6116P-25000HITACHIJAPAN
C.I DS1230Y- 1502400DALLASPHILIPPINES
TRANS. ZXMN10A09KTC18000ZETEXTAIWAN
TRIAC BT151-500R500000MOROCCO
C.I HCNR200-000E1000AVAGOTAIWAN
TRIAC TIC116M10000TITHAILAND
DIODO US1M-E3/61T18000VISHAYMALAYSIA
DIODO ES1D-E3-61T18000VISHAYMALAYSIA
C.I MC908MR16CFUE840FREESCALTAIWAN
C.I CD40106BE250TITHAILAND
ACOPLADOR PC733H1000SHARPJAPAN
TRANS NDT452AP5200FSCMALAYSIA
CI LP2951-50DR1200TITHAILAND
CI MC7809CD2TR4G1200ONMALAYSIA
DIODO MBR20200CTG22000ONMALAYSIA
FUSIVEL 30R300UU10000LITTELFUSEITAIWAN
C.I TPIC6595N10000TITHAILAND
EPM7064STC44-10N100ALTERAMALAYSIA
DIODO 1N4004-T5000000MICCHINA
C.I CD4060BM500TITHAILAND
ACOPLADOR MOC3020M500FSCMALAYSIA
DIODO W08500SEPCHINA
C.I SN74HC373N1000TIPHILIPPINES
PHOTOSENSOR 2SS52M500honeywellJAPAN
C.I SN74HC02N1000TITHAILAND
C.I CD4585BE250TITHAILAND
C.I MT46H32M16LFBF-6IT:C40MICRONMALAYSIA
DIODO MMSZ5242BT1G30000ONMALAYSIA



Bottom View Order Number
LM285Z-2.5, LM285BXZ-2.5, LM285BYZ-2.5
LM385Z-2.5, LM385AXZ-2.5 LM385AYZ-2.5,
LM385BZ-2.5, LM385BXZ-2.5 or LM385BYZ-2.5
See NS Package Number Z03A
