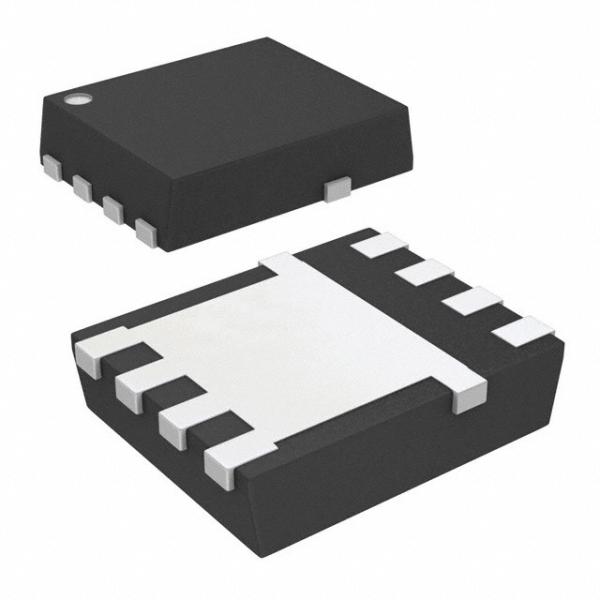

Low Thermal Resistance 100 V N-Channel NexFET Power MOSFETs CSD19533Q5A
Low Thermal Resistance 100 V N-Channel NexFET Power MOSFETs CSD19533Q5A
Specifications
Brand Name :
TI
Model Number :
CSD19533Q5A
Certification :
Original Factory Pack
Place of Origin :
Original
MOQ :
20pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union,PayPal
Supply Ability :
5200PCS
Delivery Time :
1 Day
Packaging Details :
please contact me for details
Description :
N-Channel 100 V 100A (Ta) 3.2W (Ta), 96W (Tc) Surface Mount 8-VSONP (5x6)
Drain-to-Source Voltage :
100 V
Gate Charge Total (10 V) :
27 nC
Gate Charge Gate to Drain :
4.9 nC
Drain-to-Source On Resistance :
8.7 mΩ
Threshold Voltage :
2.8 V
Description

FEATURES

• Ultra-Low Qg and Qgd

• Low Thermal Resistance

• Avalanche Rated

• Pb-Free Terminal Plating

• RoHS Compliant

• Halogen Free

• SON 5-mm × 6-mm Plastic Package

APPLICATIONS

• Primary Side Telecom

• Secondary Side Synchronous Rectifier

• Motor Control

DESCRIPTION

This 100 V, 7.8 mΩ, SON 5 mm x 6 mm NexFET™

power MOSFET is designed to minimize losses in

power conversion applications.

Q5A Tape and Reel Information

Notes:

1. 10-sprocket hole-pitch cumulative tolerance ±0.2

2. Camber not to exceed 1 mm in 100 mm, noncumulative over 250 mm

3. Material: black static-dissipative polystyrene

4. All dimensions are in mm (unless otherwise specified)

5. A0 and B0 measured on a plane 0.3 mm above the bottom of the pocket
