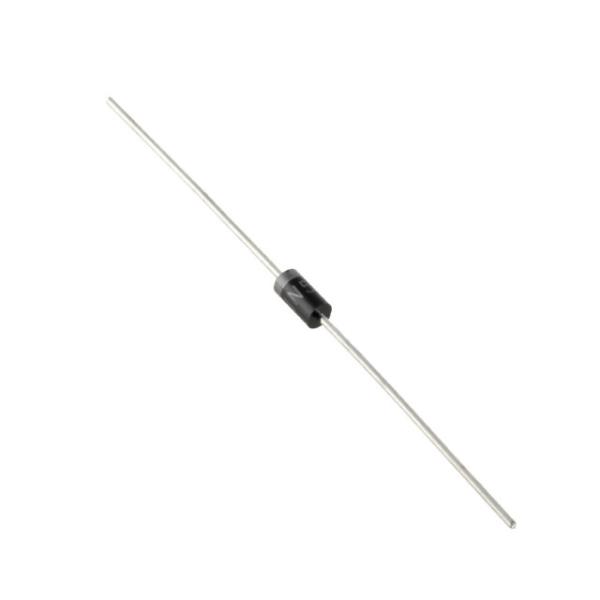

SR360-HF 3.0 AMP Schottky Barrier Rectifier Diode sr360 Signal Schottky diode
SR360-HF 3.0 AMP Schottky Barrier Rectifier Diode sr360 Signal Schottky diode
Specifications
Brand Name :
MIC
Model Number :
SR360
Certification :
Original Factory Pack
Place of Origin :
Original
MOQ :
50pcs
Price :
negotiation
Payment Terms :
T/T, Western Union,PayPal
Supply Ability :
5200PCS
Delivery Time :
1 day
Packaging Details :
please contact me for details
Description :
Diode 60 V 3A Through Hole DO-27
VRRM :
60 V
VRWM :
60 V
VDC :
60 V
IAV :
3.0 A
IFSM :
80 A
Description

SR360 3.0 AMP Schottky Barrier Rectifiers schottky barrier rectifiers diode sr360

FEATURES

 Low forward voltage drop

 High current capability

 High reliability

 High surge current capability

 Epitaxial construction

MECHANICAL DATA

 Case: Molded plastic

 Epoxy: UL 94V-0 rate flame retardant

 Lead: Axial leads, solderable per MIL-STD-202,

method 208 guaranteed

 Polarity: Color band denotes cathode end

 Mounting position: Any

 Weight: 1.10 grams (approximately)

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Rating 25°C ambient temperature unless otherwise specified. Single phase half wave, 60Hz, resistive or inductive load. For capacitive load, derate current by 20%.

PARAMETERS SYMBOL SR 360 UNITS
Recurrent Peak Reverse Voltage (Max.) VRRM 60 V
Working Peak Reverse Voltage VRWM 60 V
DC Blocking Voltage (Max.) VDC 60 V
Average Forward Rectified Current (Max.) 1 IAV 3.0 A
Peak Forward Surge Current, 8.3 ms single half sine-wave superimposed on rated load (JEDEC method) IFSM 80 A
Instantaneous Forward Voltage at 3.0A VF 0.65 V
