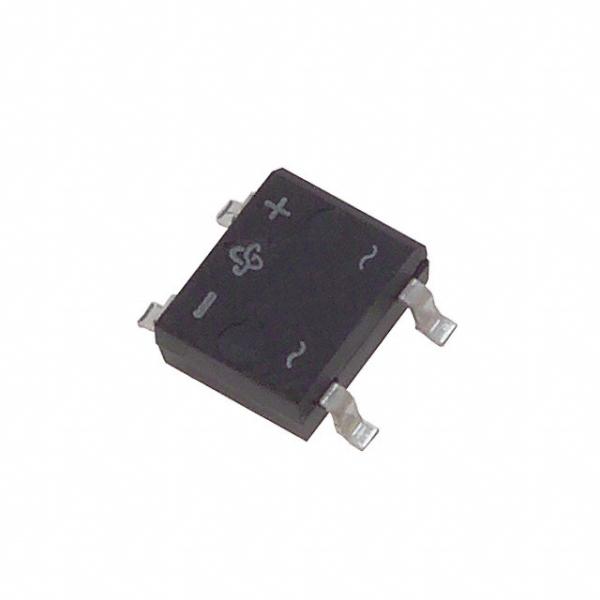

Miniature Glass Passivated Single Phase Surface Mount Bridge Rectifiers DF06S-E3/77
Miniature Glass Passivated Single Phase Surface Mount Bridge Rectifiers DF06S-E3/77
Specifications
Brand Name :
VISHAY
Model Number :
DF06S-E3-77
Certification :
Original Factory Pack
Place of Origin :
Philippines
MOQ :
20
Price :
Negotiate
Payment Terms :
T/T, Western Union,Paypal
Supply Ability :
20000
Delivery Time :
1
Packaging Details :
please contact me for details
Description :
Bridge Rectifier Single Phase Standard 600 V Surface Mount DFS
F(AV :
1 A
VRRM :
50 V to 1000 V
IFSM :
50 A
I R :
5 µA
VF :
1.1 V
TJ max :
150 °C
Description

Miniature Glass Passivated Single-Phase

Surface Mount Bridge Rectifiers

FEATURES
• UL recognition, file number E54214
• Ideal for automated placement
• High surge current capability
• Meets MSL level 1, per J-STD-020, LF maximum peak of 250 °C
• Solder dip 260 °C, 40 s
• Component in accordance to RoHS 2002/95/EC and WEEE 2002/96/EC
TYPICAL APPLICATIONS
General purpose use in ac-to-dc bridge full wave rectification for SMPS, lighting ballaster, adapter, battery charger, home appliances, office equipment, and telecommunication applications.

MECHANICAL DATA

Case: DFS Epoxy meets UL 94V-0 flammability rating

Terminals: Matte tin plated leads, solderable per J-STD-002 and JESD22-B102 E3 suffix for consumer grade, meets JESD 201 class 1A whisker test

Polarity: As marked on body

RATINGS AND CHARACTERISTICS CURVES
