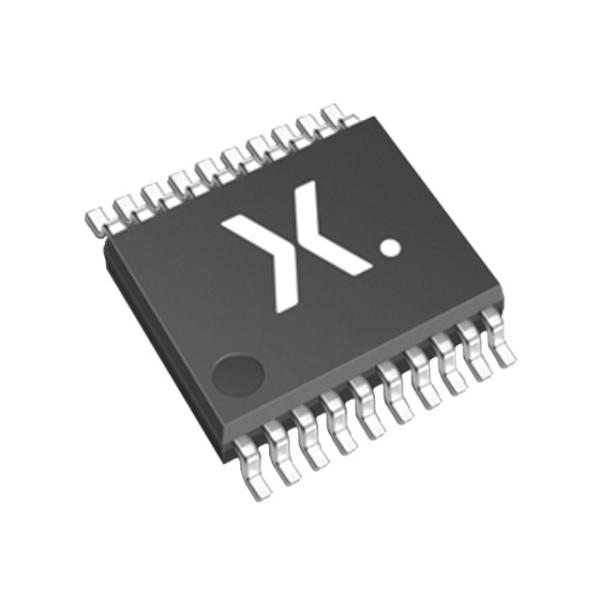

74HC244PW,118 Octal buffer/line driver; 3-state circuitboard integratedcircuit
74HC244PW,118 Octal buffer/line driver; 3-state circuitboard integratedcircuit
Specifications
Brand Name :
PH
Model Number :
74HC244PW
Certification :
Original Factory Pack
Place of Origin :
brand new
MOQ :
20pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union,PayPal
Supply Ability :
5200PCS
Delivery Time :
1 Day
Packaging Details :
please contact me for details
Description :
Buffer, Non-Inverting 2 Element 4 Bit per Element 3-State Output 20-TSSOP
supply voltage :
−0.5 ~ +7 V
input clamping current :
±20 mA
output clamping current :
+20 mA
output current :
±35 mA
supply current :
70 mA
Description

Octal buffer/line driver; 3-state

Features

■ Octal bus interface

■ Non-inverting 3-state outputs

■ Complies with JEDEC standard no. 7A

■ ESD protection:

◆ HBM EIA/JESD22-A114-C exceeds 2000 V

◆ MM EIA/JESD22-A115-A exceeds 200 V

■ Multiple package options

■ Specified from −40 °C to +85 °C and from −40 °C to +125 °C

General description

The 74HC244; 74HCT244 is a high-speed Si-gate CMOS device and is pin compatible with Low-power Schottky TTL (LSTTL).

The 74HC240; 74HCT240 is similar to the 74HC244; 74HCT244 but has inverting outputs.

The 74HC244; 74HCT244 has octal non-inverting buffer/line drivers with 3-state outputs. The 3-state outputs are controlled by the output enable inputs 1OE and 2OE. A HIGH on nOE causes the outputs to assume a high-impedance OFF-state. The 74HC244; 74HCT244 is identical to the 74HC240; 74HCT240 but has non-inverting outputs

Waveforms

STOCK LIST

OPA548T 7940 TI 13+ TO-220
MI0805K400R-10 20000 STEWARD 16+ SMD
PC3Q67Q 11480 SHARP 16+ SOP
MAX9075EUK-T 9932 MAXIM 15+ SOT
LT1932ES6#TRMPBF 11490 LINEAR 16+ SOT-23-6
MAX856ESA+ 8651 MAXIM 16+ SOP
LP339M 7728 NSC 14+ SOP-14
LT1932ES6 11446 LT 16+ SOT-23-6
MAX941CSA+ 10481 MAXIM 16+ SOP
LTC2436-1CGN 7052 LINEAR 11+ SSOP
OP275GSZ 6060 AD 16+ SOP
ICL3221ECAZ 2460 INTERSIL 14+ SSOP16
BRPY1211F-TR 1560 STANLEY 15+ SMD
FDV301N 2200 FSC 13+ SOT-23
FM25640-GTR 2200 RAMTRON 15+ SOP-8
AD8602ARZ 2450 AD 14+ SOP
BT151-500C 2100 15+ TO220
AD8604ARZ 2450 AD 16+ SOP
D3FS6 2225 SHINDENGE 13+ DO-214
BQ24702PW 1560 TI 15+ TSSOP-24
74LCX16374MTDX 7500 FAIRCHILD 15+ TSOP
HEF4052BT 1520 15+ SOP
2SC3205 3000 KEC 16+ TO-92L
DS3231SN# 4860 MAXIM 15+ SOP
HEF4013BT 1520 14+ SOP
HT7610B 2460 HOLTEK 16+ SOP/DIP
74AHC00PW 7500 15+ TSSOP
IRL540NPBF 1800 IR 12+ TO-220
LM5001MAX 2945 NSC 14+ SOP-8
MBM29LV650UE-90PFTN 5566 FUJITSU 14+ TSOP
BTA54C 10000 15+ SOT-23
PIC16F877-20/L 4863 MICROCHIP 16+ PLCC
