BAT85 Schottky Barrier Diode diode rectifier circuit Rectifier Diode SMALL SIGNAL SCHOTTKY DIODES
BAT85 Schottky Barrier Diode diode rectifier circuit Rectifier Diode SMALL SIGNAL SCHOTTKY DIODES
BAT85 Schottky Barrier Diode diode rectifier circuit Rectifier Diode SMALL SIGNAL SCHOTTKY DIODES
BAT85 Schottky Barrier Diode diode rectifier circuit Rectifier Diode SMALL SIGNAL SCHOTTKY DIODES
Specifications
Model Number :
BAT85
Certification :
new & original
Place of Origin :
original factory
MOQ :
20pcs
Price :
Negotiate
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
9600pcs
Delivery Time :
1 day
Packaging Details :
Please contact me for details
Description :

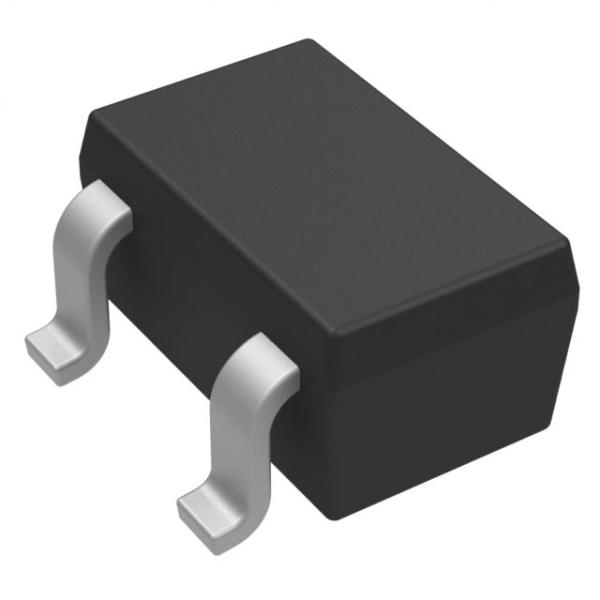

Diode Array 1 Pair Series Connection 40 V 200mA (DC) Surface Mount SC-70, SOT-323
Repetitive Peak Reverse Voltage :
30 V
Forward Continuous Current at T =25℃ :
200 mA
Power Dissipation at T=65℃ :
200 mW
Junction temperature :
125 ℃
Ambient Operating temperature Range :
-55~+125 ℃
Storage Temperature Range :
-55~+150 ℃
Description

BAT85 SMALL SIGNAL SCHOTTKY DIODES

Features

• Lead Free Finish/Rohs Compliant (Note1) ("P"Suffix designates Compliant. See ordering information)

• For general purpose applications

• These diodes features very low turn-on voltage and fast switching. These devices are protected by a PN junction guard ring against excessive voltage,such as electrostatic discharges.

• This diode is also available in the Mini-MELF case with type designation LL85.

• Moisture Sensitivity Level 1

MECHANICAL DATA

· Case: Do-35 glass case

· Polarity: Color band denotes cathode end

· Weight: Approx. 0.13 gram

ABSOLUTE RATINGS(LIMITING VALUES)

Symbol

Value

Unit

Repetitive Peak Reverse Voltage

VR

30

V

Forward Continuous Current at T =25℃

IF

200

mA

Repetitive Peak Forward Current at t<1s, ä< 0.5,T=25℃

IFM

300

mA

Surge forward current at tp<10mS , T=25℃

IFSM

600

mA

Power Dissipation at T=65℃

Ptot

200

mW

Junction temperature

TJ

125

℃

Ambient Operating temperature Range

TA

-55~+125

℃

Storage Temperature Range

TSTG

-55~+150

℃

1) Valid provided that leads at a distance of 4mm from case are kept at ambient temperature

Stock Offer (Hot Sell)

Part NO. Q'ty MFG D/C Package
M41T94MQ6F 3620 ST 16+ SOP
2MBI300N-060 100 FUJI 10+ MODULE
LTC4060EFE 6506 LINEAR 15+ TSSOP
OPA2171AIDR 6660 TI 13+ SOP
NTA4151PT1G 38000 ON 16+ SOT
LP3990MFX-1.8 5167 NSC 15+ SOT-23-5
PIC16F506-I/SL 5203 MICROCHIP 16+ SOP
BTB12-800 10000 ST 15+ TO-220
LPV321M5 6210 NSC 16+ SOT-23-5
PCF2123TS/1 12640 16+ TSSOP
M24C02-RMN6TP 38000 ST 10+ SOP
LMH0344SQE 2405 TI 13+ LLP-16
LMH0346MH 973 NSC 14+ TSSOP-20
LMH0302SQE 743 TI 14+ WQFN-16
OP37GSZ 6220 AD 16+ SOP
LM2990T-5.0 500 NSC 10+ TO-220
MAX527DCWG+ 500 MAXIM 10+ SOP
NLC565050T-271K-PF 10000 TDK 16+ SMD
MT29F2G08ABAEAH4:E 6946 MICRON 12+ BGA
BFS17P 9000 15+ SOT23
L702N 1486 ST 14+ ZIP11
