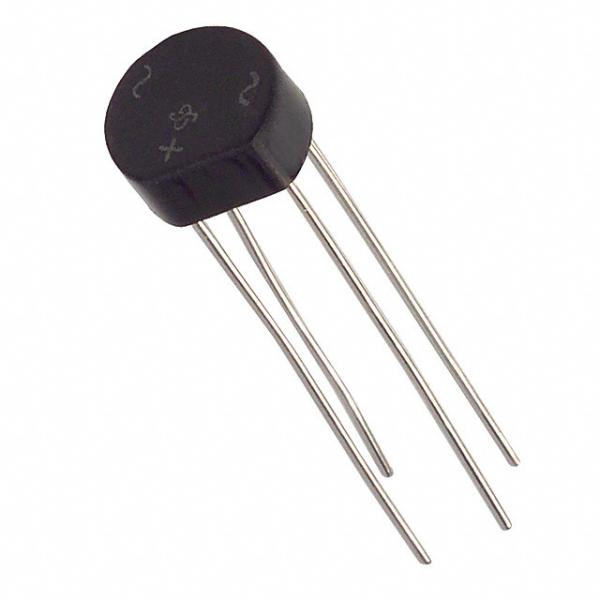

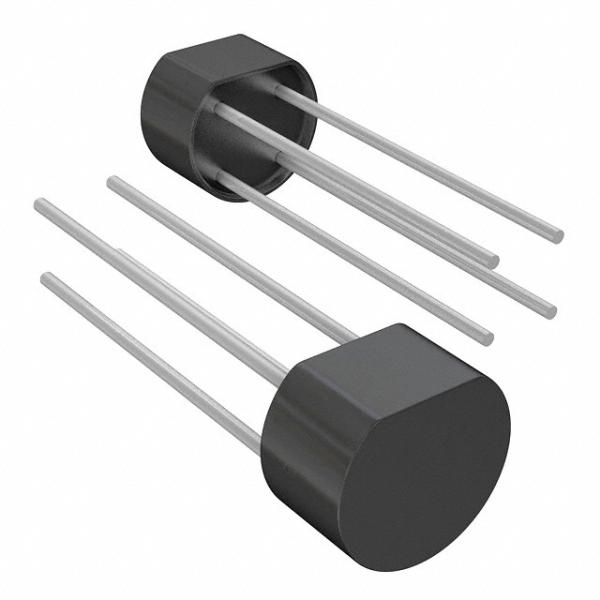

2W08G-E4/51 Rectifier Diode Single Phase Bridge Rectifier 800V Max DC Blocking Voltage
2W08G-E4/51 Rectifier Diode Single Phase Bridge Rectifier 800V Max DC Blocking Voltage
2W08G-E4/51 Rectifier Diode Single Phase Bridge Rectifier 800V Max DC Blocking Voltage
2W08G-E4/51 Rectifier Diode Single Phase Bridge Rectifier 800V Max DC Blocking Voltage
Specifications
Model Number :
2W08
Certification :
new & original
Place of Origin :
original factory
MOQ :
100pcs
Price :
Negotiate
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
9300pcs
Delivery Time :
1 day
Packaging Details :
Please contact me for details
Description :
Bridge Rectifier Single Phase Standard 800 V Through Hole WOG
Average Forward Current :
2.0A
Peak Forward Surge Current :
60A
Maximum Forward Voltage Drop Per Element :
1.1V
Operating Temperature :
-55°C to +125°C
Storage Temperature :
-55°C to +150°C
Maximum Recurrent Peak Reverse Voltage :
800V
Maximum RMS Voltage :
560V
Maximum DC Blocking Voltage :
800V
Description

2W005 THRU 2W10

2 Amp Single Phase Bridge Rectifier 50 to 1000 Volts

Features

• Low Profile Package

• Any Mounting Position

• Silver Plated Copper Leads

• Surge Overload Rating Of 60 Amps

• UL Recognized File # E165989

• Case Material: Molded Plastic. UL Flammability

Classification Rating 94V-0

Maximum Ratings

• Operating Temperature: -55°C to +125°C

• Storage Temperature: -55°C to +150°C

• Typical Thermal Resistance Of 40°C/W Junction To Ambient

MCC Catalog Number Maximum Recurrent Peak Reverse Voltage Maximum RMS Voltage Maximum DC Blocking Voltage
2W005 50V 35V 50V
2W01 100V 70V 100V
2W02 200V 140V 200V
2W04 400V 280V 400V
2W06 600V 420V 600V
2W08 800V 560V 800V
2W010 1000V 700V 1000V
