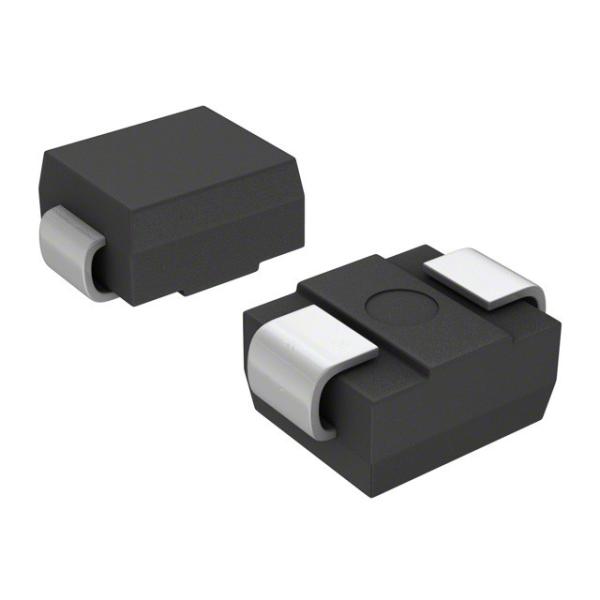

SMBJ10A-E3/52 600W SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR rectifier diode circuit
SMBJ10A-E3/52 600W SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR rectifier diode circuit
Specifications
Brand Name :
VISHAY
Model Number :
SMBJ10A-E3/52
Certification :
Original Factory Pack
Place of Origin :
Original
MOQ :
5pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union,PayPal
Supply Ability :
290PCS
Delivery Time :
1 Day
Packaging Details :
please contact me for details
Description :
17V Clamp 35.3A Ipp Tvs Diode Surface Mount DO-214AA (SMBJ)
PPK :
600 W
Pder :
4.8 W/C
IFSM :
100 A
PM(AV) :
5.0 W
Tj :
-55 to +150 C
Description

600W SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR

Features

►600W Peak Pulse Power Dissipation

►5.0V - 170V Standoff Voltages

►Glass Passivated Die Construction

►Uni- and Bi-Directional Versions Available

►Excellent Clamping Capability

►Fast Response Time

►Lead Free Finish/RoHS Compliant (Note 4) Mecha

Mechanical Data

Case: SMB

Case Material: Molded Plastic. UL Flammability Classification Rating 94V- 0 Moisture Sensitivity: Level 1 per J-STD-020C

Terminals: Lead Free Plating (Matte Tin Finish). Solderable per MIL-STD- 202, Method 208

Polarity Indicator: Cathode Band (Note: Bi-directional devices have no polarity indicator.)

Marking: Date Code and Marking Code See Page 4 Ordering Info: See Page 4

Weight: 0.1 grams (approximate) 600W

Maximum Ratings @ TA = 25°C unless otherwise specified

Characteristic Symbol Value Unit

Peak Pulse Power Dissipation

(Non repetitive current pulse derated above TA = 25C) (Note 1)

 PPK 600 W
Peak Power Derating Above 25°C Pder 4.8 W/C

Peak Forward Surge Current, 8.3ms Single Half Sine Wave

Superimposed on Rated Load (Notes 1, 2, & 3

 IFSM 100 A
Steady State Power Dissipation @ TL = 75C PM(AV) 5.0 W
Operating Temperature Range Tj -55 to +150  C
Storage Temperature Range TSTG -55 to +175  C
