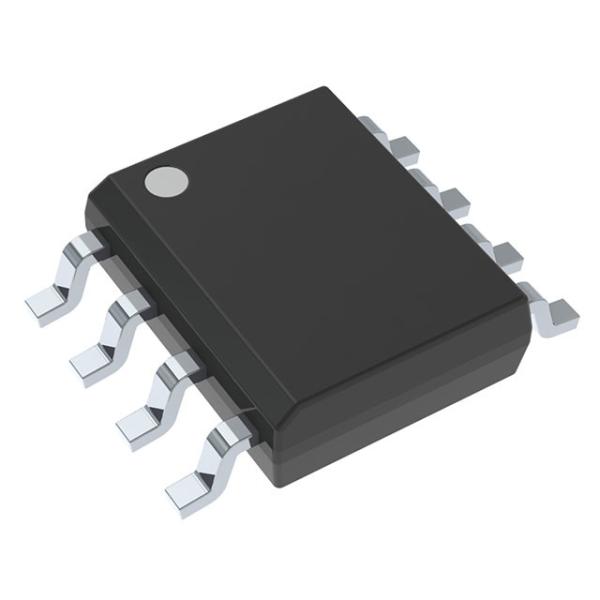

LM386M-1 Rectifier Diode Low Voltage Audio Power Amplifier
LM386M-1 Rectifier Diode Low Voltage Audio Power Amplifier
Specifications
Brand Name :
NSC
Model Number :
LM386M-1
Certification :
Original Factory Pack
Place of Origin :
Philippines
MOQ :
20
Price :
Negotiate
Payment Terms :
T/T, Western Union,Paypal
Supply Ability :
20000
Delivery Time :
1
Packaging Details :
please contact me for details
Description :
Amplifier IC 1-Channel (Mono) Class AB 8-SOIC
Supply Voltage :
15V
Package Dissipation :
0.595W
Input Voltage :
Low reference voltage
Storage Temperature :
−65˚C to +150˚C
Junction Temperature :
+150˚C
Description

LM386

Low Voltage Audio Power Amplifier

General Description

The LM386 is a power amplifier designed for use in low voltage consumer applications. The gain is internally set to 20 to keep external part count low, but the addition of an external resistor and capacitor between pins 1 and 8 will increase the gain to any value up to 200.

The inputs are ground referenced while the output is automatically biased to one half the supply voltage. The quiescent power drain is only 24 milliwatts when operating from a 6 volt supply, making the LM386 ideal for battery operation.

Features

♦ Battery operation n Minimum external parts

♦ Wide supply voltage range: 4V–12V or 5V–18V

♦ Low quiescent current drain: 4 mA

♦ Voltage gains from 20 to 200

♦ Ground referenced input

♦ Self-centering output quiescent voltage

♦ Low distortion

♦ Available in 8 pin MSOP package

Applications

► AM-FM radio amplifiers

► Portable tape player amplifiers

► Intercoms

► TV sound systems

► Line drivers

► Ultrasonic drivers

► Small servo drivers

► Power converters
