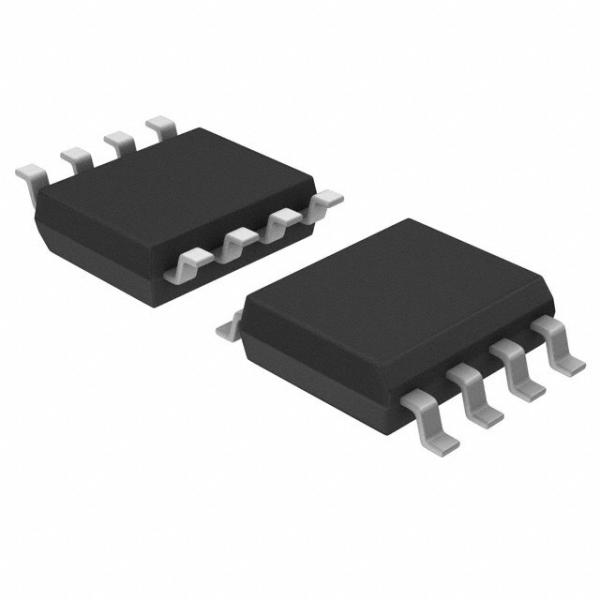

SST25VF016B-50-4I-S2AF 16 Mbit SPI Serial Flash electronic component
SST25VF016B-50-4I-S2AF 16 Mbit SPI Serial Flash electronic component
Specifications
Brand Name :
SST
Model Number :
SST25VF016B-50-4I-S2AF
Certification :
Original
Place of Origin :
Original
MOQ :
5 PCS
Price :
0.1USD
Payment Terms :
T/T, Western Union,Paypal
Supply Ability :
10000PCS/DAY
Delivery Time :
1 day
Packaging Details :
contact us for more details
Description :
FLASH Memory IC 16Mbit SPI 50 MHz 8-SOIC
Voltage :
2.7-3.6V
CURRENT :
1.0Ampere
Commercial :
0°C to +70°C
Features :
Single Voltage Read and Write Operations
Industrial :
-40°C to +85°C
Type :
SPI
Description
SST25VF016B-50-4I-S2AF 16 Mbit SPI Serial Flash
FEATURES:
• Single Voltage Read and Write Operations
– 2.7-3.6V
• Serial Interface Architecture
– SPI Compatible: Mode 0 and Mode 3
• High Speed Clock Frequency
– Up to 80 MHz
• Superior Reliability
– Endurance: 100,000 Cycles (typical)
– Greater than 100 years Data Retention
• Low Power Consumption:
– Active Read Current: 10 mA (typical)
– Standby Current: 5 µA (typical)
• Flexible Erase Capability
– Uniform 4 KByte sectors
– Uniform 32 KByte overlay blocks
– Uniform 64 KByte overlay blocks
• Fast Erase and Byte-Program:
– Chip-Erase Time: 35 ms (typical)
– Sector-/Block-Erase Time: 18 ms (typical)
– Byte-Program Time: 7 µs (typical)
• Auto Address Increment (AAI) Programming
– Decrease total chip programming time over
Byte-Program operations
• End-of-Write Detection
– Software polling the BUSY bit in Status Register
– Busy Status readout on SO pin in AAI Mode
• Hold Pin (HOLD#)
– Suspends a serial sequence to the memory
without deselecting the device
• Write Protection (WP#)
– Enables/Disables the Lock-Down function of the
status register
• Software Write Protection
– Write protection through Block-Protection bits in
status register
• Temperature Range
– Commercial: 0°C to +70°C
– Industrial: -40°C to +85°C
• Packages Available
– 8-lead SOIC (200 mils)
– 8-contact WSON (6mm x 5mm)
• All non-Pb (lead-free) devices are RoHS compliant
Protection Level BP3 BP2 BP1 BP0 16Mbit
Upper 1/32 x 0 0 1
1F0000H-1FFFFFH
Upper 1/16
 x 0 1 0 1F0000H-1FFFFFH
Upper 1/8 x 0 1 1 1F0000H-1FFFFFH
