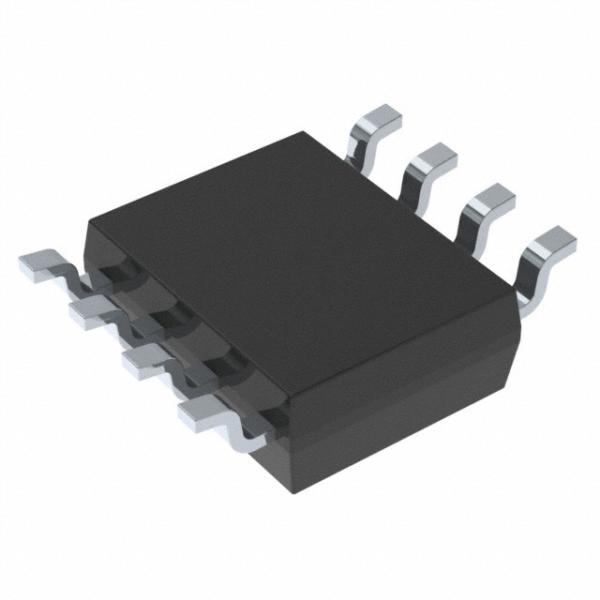

24LC256-I/SM Circuit Board Chips Serial EEPROM With 256K IC CMOS
24LC256-I/SM Circuit Board Chips Serial EEPROM With 256K IC CMOS
24LC256-I/SM Circuit Board Chips Serial EEPROM With 256K IC CMOS
24LC256-I/SM Circuit Board Chips Serial EEPROM With 256K IC CMOS
Specifications
Brand Name :
MICROCHIP
Model Number :
24LC256-I-SM
Certification :
Original
Place of Origin :
Original
MOQ :
5 PCS
Price :
0.1USD
Payment Terms :
T/T, Western Union,Paypal
Supply Ability :
10000PCS/DAY
Delivery Time :
1 day
Packaging Details :
contact us for more details
Description :
EEPROM Memory IC 256Kbit I²C 400 kHz 900 ns 8-SOIJ
VCC Range :
1.7-5.5V
Clock Frequency :
400 kHz
Temp Ranges :
I, E
Industrial :
-40 to +85
Automotive :
-40 to +125
Type :
Serial EEPROM
Description
24LC256-I-SM Serial EEPROM With 256K IC CMOS
Features:
• Single Supply with Operation Down to 1.7V for(24AA256 and 24FC256 Devices, 2.5V for)(24LC256 Devices)
• Low-Power CMOS Technology: 1.Active current 400 uA, typical 2.Standby current 100 nA, typical 3.2-Wire Serial Interface, I2C™ Compatible
• Cascadable up to Eight Devices • Schmitt Trigger Inputs for Noise Suppression • Output Slope Control to Eliminate Ground Bounce
• 100 kHz and 400 kHz Clock Compatibility • Page Write Time 5 ms Max. • Self-Timed Erase/Write Cycle
• 64-Byte Page Write Buffer • Hardware Write-Protect • ESD Protection >4000V • More than One Million Erase/Write Cycles
• Data Retention >200 years • Factory Programming Available • Packages Include 8-lead PDIP, SOIC, DFN,TDFN, TSSOP and MSOP
• Pb-Free and RoHS Compliant
• Temperature Ranges: 1.Industrial (I):-40°C to +85°C 2.Automotive (E):-40°C to +125°C
Description:
The Microchip Technology Inc. 24AA256/24LC256/24FC256 (24XX256*) is a 32K x 8 (256 Kbit) Serial Electrically Erasable PROM, capable of operation
across a broad voltage range (1.7V to 5.5V). It has been developed for advanced, low-power applications such as personal communications or data acquisition. This device also has a page write capability of up to 64 bytes of data. This device is capable of both random and sequential reads up to the 256K boundary. Functional address lines allow up to eight devices on the same bus, for up to 2 Mbit address space. This device is available in the standard 8-pin plastic DIP, SOIC, TSSOP, MSOP, DFN and TDFN packages. The 24AA256 is also available in the 8-lead Chip Scale Package.
Param.
No.
 Sym. Characteristic
Min.
 Max. Units

Conditions
D1
VIH
A0, A1, A2, SCL, SDA
and WP pins:
—
 — — —
D2
VIL
High-level input voltage
0.7 VCC
 — V —
D3 VHYS
Low-level input voltage
Hysteresis of Schmitt
Trigger inputs
(SDA, SCL pins)
—
 0.3 VCC V VCC<2.5V
D4 VOL Low-level output voltage 0.5 VCC — V VCC<2.5V
