FAN6921MRMY Power Path Management IC PFC Crtcl Md PFC & Quasi Res Cur Md PWM Cntlr

Features

• Integrated PFC and Flyback Controller
• Critical Mode PFC Controller
• Zero-Current Detection for PFC Stage
• Quasi-Resonant Operation for PWM Stage
• Internal Minimum tOFF 8 μs for QR PWM Stage
• Internal 10 ms Soft-Start for PWM
• Brownout Protection
• High / Low Line Over-Power Compensation
• Auto-Recovery Over-Current Protection
• Auto-Recovery Open-Loop Protection
• Externally Latch Triggering (RT Pin)
• Adjustable Over-Temperature Latched (RT Pin)
• VDD Pin and Output Voltage OVP (Latched)
• Internal Over-Temperature Shutdown (140°C)

Applications

• AC/DC NB Adapters
• Open-Frame SMPS
• Battery Charger

Description

The highly integrated FAN6921MR combines Power Factor Correction (PFC) controller and Quasi-Resonant PWM controller. Integration provides cost effect design and allows for fewer external components.

For PFC, FAN6921MR uses a controlled on-time technique to provide a regulated DC output voltage and to perform natural power factor correction. With an innovative THD optimizer, FAN6921MR can reduce input current distortion at zero-crossing duration to improve THD performance.

For PWM, FAN6921MR provides several functions to enhance the power system performance: valley detection, green-mode operation, high / low line over power compensation. FAN6921MR provides many protection functions as well: secondary-side open-loop and over-current with auto recovery protection, external latch triggering, adjustable over-temperature protection by RT pin and external NTC resistor, internal over- temperature shutdown, VDD pin OVP, and DET pin over- voltage for output OVP, and brown-in / out for AC input voltage UVP.

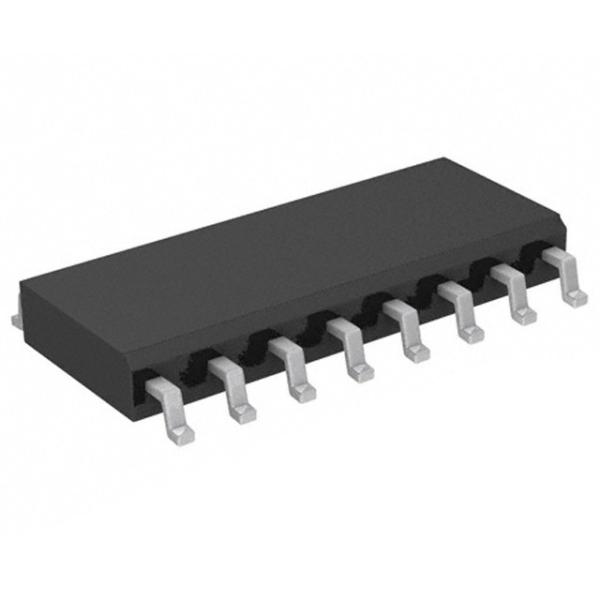

The FAN6921MR controller is available in a 16-pin small outline package (SOP).
