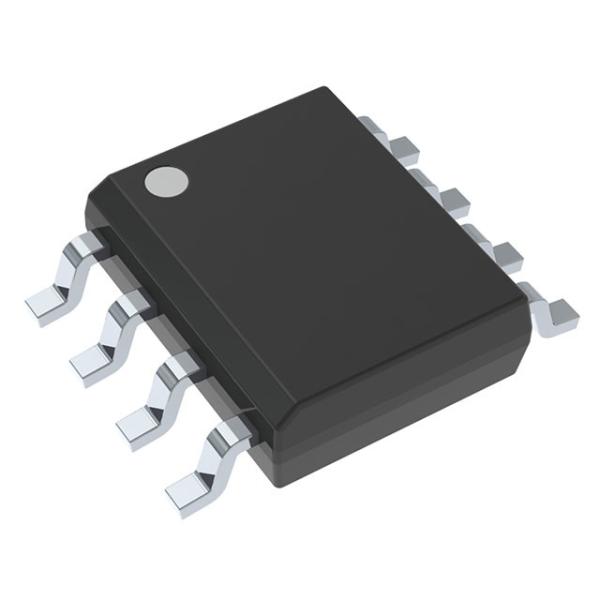

TL072CDR Audio Power Amplifier IC Op Amps Dual JFET Op Amp
TL072CDR Audio Power Amplifier IC Op Amps Dual JFET Op Amp
Specifications
Brand Name :
TI
Model Number :
TL072CDR
MOQ :
Contact us
Price :
Contact us
Payment Terms :
Paypal, Western Union, TT
Supply Ability :
50000 Pieces per Day
Delivery Time :
The goods will be shipped within 3 days once received fund
Packaging Details :
SOP8
Description :
J-FET Amplifier 2 Circuit 8-SOIC
Maximum Operating Temperature :
+ 85 C
Minimum Operating Temperature :
- 40 C
Operating Supply Current :
1.4 mA
Supply Voltage - Min :
7 V
Vos - Input Offset Voltage :
6 mV
Ib - Input Bias Current :
200 pA
Description

TL072CDR Audio Power Amplifier IC Op Amps Dual JFET Op Amp

1 Features

  • Low Power Consumption

  • Wide Common-Mode and Differential Voltage

    Ranges

  • Low Input Bias and Offset Currents

  • Output Short-Circuit Protection

  • Low Total Harmonic Distortion: 0.003% (Typical)

  • Low Noise
    Vn = 18 nV/√Hz (Typical) at f = 1 kHz

  • High-Input Impedance: JFET Input Stage

  • Internal Frequency Compensation

  • Latch-Up-Free Operation

  • High Slew Rate: 13 V/μs (Typical)

  • Common-Mode Input Voltage Range Includes VCC+

2 Applications

  • Motor Integrated Systems: UPS

  • Drives and Control Solutions: AC Inverter and VF Drives

  • Renewables: Solar Inverters

  • Pro Audio Mixers

  • DLP Front Projection System

  • Oscilloscopes

3 Description

The TL07xx JFET-input operational amplifiers incorporate well-matched, high-voltage JFET and bipolar transistors in a monolithic integrated circuit. The devices feature high slew rates, low-input bias and offset currents, and low offset-voltage temperature coefficient. The low harmonic distortion and low noise make the TL07x series ideally suited for high-fidelity and audio pre-amplifier applications. The TL071 device has offset pins to support external input offset correction.

Device Information

PART NUMBER

PACKAGE

BODY SIZE (NOM)

TL07xxD

SOIC (14)

8.65 mm × 3.91 mm

SOIC (8)

4.90 mm x 3.90 mm

TL07xxJG

CDIP (8)

9.59 mm x 6.67 mm

TL074xJ

CDIP (14)

19.56 mm × 6.92 mm

TL07xxP

PDIP (8)

9.59 mm x 6.35 mm

TL07xxPS

SO (8)

6.20 mm x 5.30 mm

TL074xN

PDIP (14)

19.3 mm × 6.35 mm

TL074xNS

SO (14)

10.30 mm × 5.30 mm

TL07xxPW

TSSOP (8)

4.40 mm x 3.00 mm

TL074xPW

TSSOP (14)

5.00 mm × 4.40 mm
