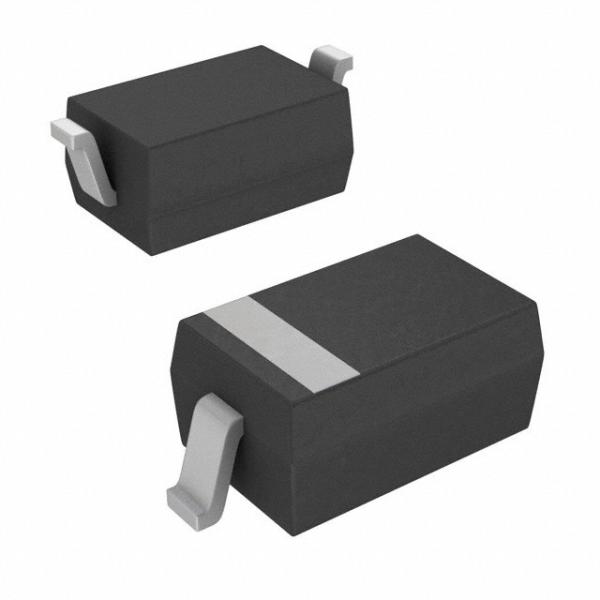

B5819W Marking SL Schottky Barrier Diode 40V 1A SMD IN5819W SOD123
B5819W Marking SL Schottky Barrier Diode 40V 1A SMD IN5819W SOD123
Specifications
Brand Name :
Original
Model Number :
B5819W
MOQ :
10 pcs
Price :
Bargain
Payment Terms :
T/T
Supply Ability :
1kk/months
Delivery Time :
1-7 days
Packaging Details :
Carton
Description :
Diode 40 V 1A Surface Mount SOD-123
Product :
Schottky Rectifiers
Mounting Style :
SMD/SMT
Package / Case :
SOD-123
Configuration :
Single
Vrrm :
40 V
If - Forward Current :
1 A
Description

B5819W 1N5819W SOD-123 Marking SL schottky barrier diode 40V 1A SMD IN5819W SOD123

B5819W B5819WS BAT54 BAT54A BAT54C BAT54S SOT-23 SOD-123 SOD-323 SMD Schottky Barrier Rectifier Diode SMT Diodes

MECHANICAL DATA
• Case: SOD-123
• Terminals: Solderable per MIL-STD-750, Method 2026
• Approx. Weight:16mg/0.00056oz

SCHOTTKY BARRIER RECTIFIERS FEATURES
• Guarding for overvoltage protection
• Low power loss, high efficiency
• High current capability
• low forward voltage drop
• High surge capability
• For use in low voltage, high frequency inverters,
free wheeling, and polarity protection applications

Maximum Ratings and Electrical characteristics
Ratings at 25 °C ambient temperature unless otherwise specified

Parameter B5819W Units
Maximum Repetitive Peak Reverse Voltage

40

 V
Maximum RMS voltage 28 V
Maximum DC Blocking Voltage 40 V
Maximum Average Forward Rectified Current 1 A
Peak Forward Surge Current, 8.3ms Single Half Sine-wave
Superimposed On Rated Load (JEDEC method)		 25 A
Maximum Instantaneous Forward Voltage 0.6/0.9 V
Maximum Instantaneous Reverse Current at
Rated DC Reverse Voltage		 1 / 10 mA
Typical Junction Capacitance 110 pF
Storage and Operating Junction Temperature Range -55 ~ +125 °C

PACKAGE OUTLINE
Plastic surface mounted package; 2 leads SOD-123
