OPA350EA/2K5 Audio Power Amplifier IC High Speed Operational Amplifiers Hi-Spd Single-Sply Rail-to-Rail

1 Features

• Rail-to-Rail Input

• Rail-to-Rail Output (Within 10 mV)

• Wide Bandwidth: 38 MHz

• High Slew Rate: 22 V/μs

• Low Noise: 5 nV/√Hz

• Low THD+Noise: 0.0006%

• Unity-Gain Stable

• MicroSize Packages

• Single, Dual, and Quad

2 Applications

• Cell Phone PA Control Loops

• Driving A/D Converters

• Video Processing

• Data Acquisition

• Process Controls

• Audio Processing

• Communications

• Active Filters

• Test Equipment

3 Description

The OPA350 series of rail-to-rail CMOS operational amplifiers are optimized for low voltage, single-supply operation. Rail-to-rail input and output, low noise (5 nV/√Hz), and high speed operation (38 MHz, 22 V/μs) make the amplifiers ideal for driving sampling Analog- to-Digital (A/D) converters. They are also suited for cell phone PA control loops and video processing (75-Ω drive capability), as well as audio and general purpose applications. Single, dual, and quad versions have identical specifications for maximum design flexibility.

The OPA350 series operates on a single supply as low as 2.5 V, with an input common-mode voltage range that extends 300 mV below ground and 300 mV above the positive supply. Output voltage swing is to within 10 mV of the supply rails, with a 10-kΩ load. Dual and quad designs feature completely independent circuitry for lowest crosstalk and freedom from interaction.

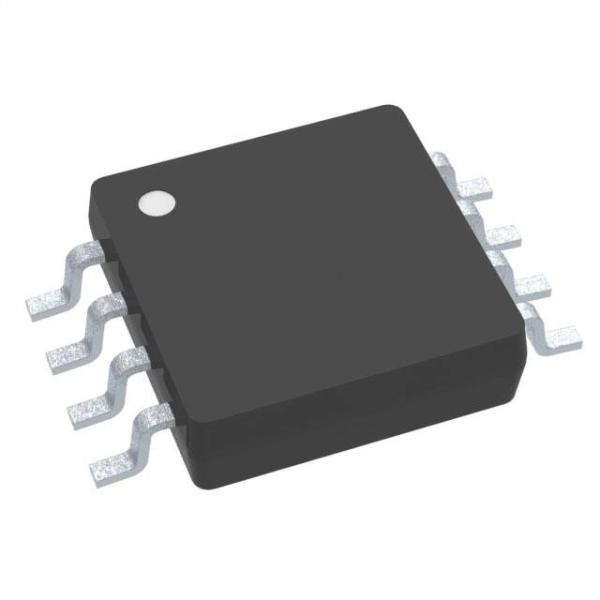

The single (OPA350) and dual (OPA2350) come in the miniature MSOP-8 surface mount, SO-8 surface mount, and DIP-8 packages. The quad (OPA4350) packages are in the space-saving SSOP-16 surface mount and SO-14 surface mount. All are specified from −40°C to 85°C and operate from −55°C to 150°C.
