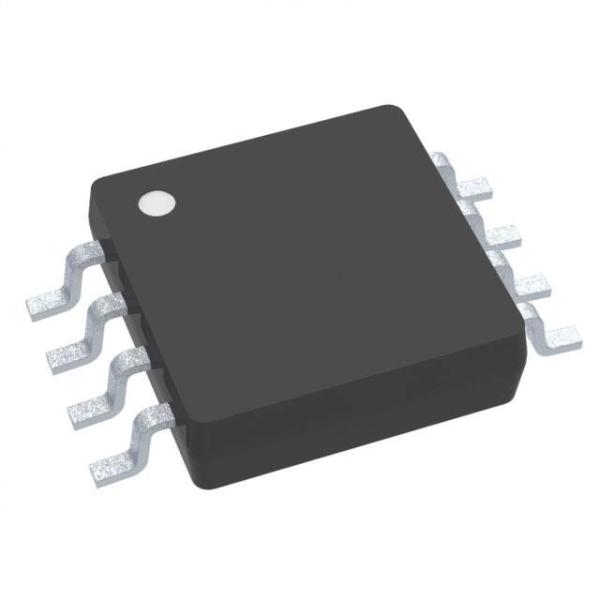

OPA2354AIDGKR OPA2354AQDGKR Audio Power Amplifier IC High Speed Operational Amplifiers 250MHz Rail-to-Rail I/O CMOS Quad
OPA2354AIDGKR OPA2354AQDGKR Audio Power Amplifier IC High Speed Operational Amplifiers 250MHz Rail-to-Rail I/O CMOS Quad
Specifications
Brand Name :
Ti
Model Number :
OPA2354AIDGKR
MOQ :
Contact us
Price :
Contact us
Payment Terms :
Paypal, Western Union, TT
Supply Ability :
50000 Pieces per Day
Delivery Time :
The goods will be shipped within 3 days once received fund
Packaging Details :
MSOP8
Description :
CMOS, Voltage Feedback Amplifier 2 Circuit Rail-to-Rail 8-VSSOP
Height :
0.97 mm
Input Type :
Rail-to-Rail
LeCM GROUPh :
3 mm
Output Type :
Rail-to-Rail
Product :
Operational Amplifiers
Width :
3 mm
Description

OPA2354AIDGKR OPA2354AQDGKR Audio Power Amplifier IC High Speed Operational Amplifiers 250MHz Rail-to-Rail I/O CMOS Quad

1 Features

  • Unity-Gain Bandwidth: 250 MHz

  • Wide Bandwidth: 100-MHz GBW

  • High Slew Rate: 150 V/μs

  • Low Noise: 6.5 nV√Hz

  • Rail-to-Rail I/O

  • High Output Current: > 100 mA

  • Excellent Video Performance:

    • – Differential Gain: 0.02%, Differential Phase: 0.09°

    • – 0.1-dB Gain Flatness: 40 MHz

  • Low Input Bias Current: 3 pA

  • Quiescent Current: 4.9 mA

  • Thermal Shutdown

  • Supply Range: 2.5 V to 5.5 V

  • MicroSIZE and PowerPADTM Packages

2 Applications

  • Video Processing

  • Ultrasound

  • Optical Networking, Tunable Lasers

  • Photodiode Transimpedance Amps

  • Active Filters

  • High-Speed Integrators

  • Analog-to-Digital (A/D) Converter Input Buffers

  • Digital-to-Analog (D/A) Converter Output Amplifiers

3 Description

The OPAx354 series of high-speed, voltage-feedback CMOS operational amplifiers are designed for video and other applications requiring wide bandwidth. They are unity-gain stable and can drive large output currents. Differential gain is 0.02% and differential phase is 0.09°. Quiescent current is only 4.9 mA per channel.

The OPAx354 series of op amps are optimized for operation on single or dual supplies as low as 2.5 V (±1.25 V) and up to 5.5 V (±2.75 V). Common-mode input range extends beyond the supplies. The output swing is within 100 mV of the rails, supporting wide dynamic range.

For applications requiring the full 100-mA continuous output current, single and dual 8-pin HSOP PowerPAD versions are available.

The single version (OPA354) is available in the tiny 5- pin SOT-23 and 8-pin HSOP PowerPAD packages. The dual version (OPA2354) comes in the miniature 8-pin VSSOP and 8-pin HSOP PowerPAD packages. The quad version (OPA4354) is offered in 14-pin TSSOP and 14-pin SOIC packages.

Multichannel version features completely independent circuitry for lowest crosstalk and freedom from interaction. All features are specified over the extended –40°C to +125°C temperature range.

Device Information

PART NUMBER

PACKAGE

BODY SIZE (NOM)

OPA354

HSOP (8)

4.89 mm × 3.90 mm

SOT-23 (5)

2.90 mm × 1.60 mm

OPA2354

VSSOP (8)

3.00 mm × 3.00 mm

HSOP (8)

4.89 mm × 3.90 mm

OPA4354

SOIC (14)

8.65 mm × 3.91 mm

TSSOP (14)

5.00 mm × 4.40 mm
