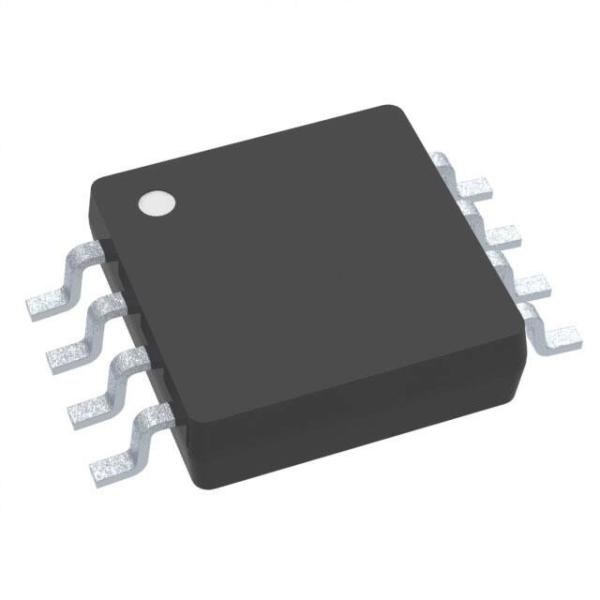

OPA2377AIDGKR Audio Power Amplifier IC Precision Amplifiers Low-Cost Low Noise 5MHz CMOS Op Amp
OPA2377AIDGKR Audio Power Amplifier IC Precision Amplifiers Low-Cost Low Noise 5MHz CMOS Op Amp
Specifications
Brand Name :
Ti
Model Number :
OPA2377AIDGKR
MOQ :
Contact us
Price :
Contact us
Payment Terms :
Paypal, Western Union, TT
Supply Ability :
50000 Pieces per Day
Delivery Time :
The goods will be shipped within 3 days once received fund
Packaging Details :
MSOP8
Description :
CMOS Amplifier 2 Circuit Rail-to-Rail 8-VSSOP
Vos - Input Offset Voltage :
1 mV
Ib - Input Bias Current :
10 pA
Output Current per Channel :
30 mA
CMRR - Common Mode Rejection Ratio :
70 dB to 90 dB
SR - Slew Rate :
2 V/us
Shutdown :
No Shutdown
Description

OPA2377AIDGKR Audio Power Amplifier IC Precision Amplifiers Low-Cost Low Noise 5MHz CMOS Op Amp

FEATURES

  • GAIN BANDWIDTH PRODUCT: 5.5MHz

  • LOW NOISE: 7.5nV/√Hz at 1kHz

  • OFFSET VOLTAGE: 1mV (max)

  • INPUT BIAS CURRENT: 0.2pA

  • RAIL-TO-RAIL OUTPUT

  • UNITY-GAIN STABLE

  • EMI INPUT FILTERING

  • QUIESCENT CURRENT: 0.76mA/ch

  • SUPPLY VOLTAGE: 2.2V to 5.5V

  • SMALL PACKAGES: SC70, SOT23, and MSOP

APPLICATIONS

  • PHOTODIODE PREAMP

  • PIEZOELECTRIC SENSOR PREAMP

  • SENSOR SIGNAL CONDITIONING

  • AUDIO EQUIPMENT

  • ACTIVE FILTERS

DESCRIPTION

The OPA377 family of operational amplifiers are wide-bandwidth CMOS amplifiers that provide very low noise, low input bias current, and low offset voltage while operating on a low quiescent current of 0.76mA (typ).

The OPA377 op amps are optimized for low-voltage, single-supply applications. The exceptional combination of ac and dc performance make them ideal for a wide range of applications, including small signal conditioning, audio, and active filters. In addition, these parts have a wide supply range with excellent PSRR, making them attractive for applications that run directly from batteries without regulation.

The OPA377 is available in the SC70-5, SOT23-5, and SO-8 packages. The dual OPA2377 is offered in the SO-8 and MSOP-8, and the quad OPA4377 in the TSSOP-14 packages. All versions are specified for operation from –40°C to +125°C.
