Specifications
Brand Name :
TI
Model Number :
OPA567AIRHGR
MOQ :
Contact us
Price :
Contact us
Payment Terms :
Paypal, Western Union, TT
Supply Ability :
50000 Pieces per Day
Delivery Time :
The goods will be shipped within 3 days once received fund
Packaging Details :
VQFN-12
Description :
General Purpose Amplifier 1 Circuit Rail-to-Rail 12-VQFN (5x5)
Brand :
Texas Instruments
LeCM GROUPh :
5 mm
Output Type :
Rail-to-Rail
Product :
Operational Amplifiers
Supply Type :
Single
Width :
5 mm
Description

OPA567AIRHGR OPA567AIRHG Audio Power Amplifier IC Op Amps Rail-to-Rail I/O 2A Power Amplifier

FEATURES

● HIGH OUTPUT CURRENT: 2A

● OUTPUT SWINGS TO: 150mV of Rails with I O

● THERMAL PROTECTION

● ADJUSTABLE CURRENT LIMIT

● TWO FLAGS: Current Limit and Temperature Warning

● LOW SUPPLY VOLTAGE OPERATION: 2.7V to 5.5V

● SHUTDOWN FUNCTION WITH OUTPUT DISABLE

● SMALL POWER PACKAGE

APPLICATIONS

● THERMOELECTRIC COOLER DRIVER

● LASER DIODE PUMP DRIVER

● VALVE, ACTUATOR DRIVER

● SYNCHRO, SERVO DRIVER

● TRANSDUCER EXCITATION

● GENERAL LINEAR POWER BOOSTER FOR

DESCRIPTION

The OPA567 is a low-cost, high-current, operational amplifier designed for driving a wide variety of loads while operating on low-voltage supplies. It operates from either single or dual supplies for design flexibility and has rail-to-rail swing on the input and output. Output swing is within 300mV of the supply rails, with output current of 2A. Smaller loads allow an output swing closer to the rails.

The OPA567 is unity gain stable, easy to use, and free from the phase inversion problems found in some power amplifi- ers. High performance is maintained at voltage swings near the output rails.

The OPA567 provides an accurate user-selected current limit set with an external resistor, or digitally adjusted via a Digital-to-Analog Converter (DAC).

The output of the OPA567 can be independently disabled using the Enable pin. This feature saves power and protects the load.

Two flags are provided. The current limit flag, IFLAG, warns of current limit conditions. TFLAG is a thermal flag that warns of thermal overstress. The TFLAG pin can be connected to the Enable pin to provide a thermal shutdown solution.

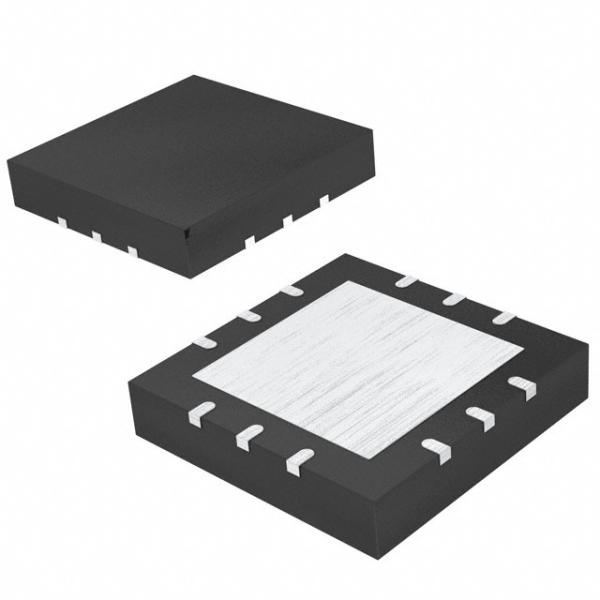

The OPA567 is available in a tiny 5mm x 5mm Quad Flatpack No-lead (QFN) package and features an exposed thermal pad that enhances thermal and electrical character- istics. It is small and easy to heat sink. The OPA567 is specified for operation over the industrial temperature range, –40°C to +85°C.
