ADA4898-2YRDZ-R7 Audio Power Amplifier IC High Speed Operational Amplifiers High VTG Low Noise Low Distort High Spd
ADA4898-2YRDZ-R7 Audio Power Amplifier IC High Speed Operational Amplifiers High VTG Low Noise Low Distort High Spd
ADA4898-2YRDZ-R7 Audio Power Amplifier IC High Speed Operational Amplifiers High VTG Low Noise Low Distort High Spd
ADA4898-2YRDZ-R7 Audio Power Amplifier IC High Speed Operational Amplifiers High VTG Low Noise Low Distort High Spd
Specifications
Brand Name :
ADI
Model Number :
ADA4898-2YRDZ-R7
MOQ :
Contact us
Price :
Contact us
Payment Terms :
Paypal, Western Union, TT
Supply Ability :
50000 Pieces per Day
Delivery Time :
The goods will be shipped within 3 days once received fund
Packaging Details :
SOP8
Description :
Voltage Feedback Amplifier 2 Circuit 8-SOIC-EP
SR - Slew Rate :
55 V/us
GBP - Gain Bandwidth Product :
50 MHz
Number of Channels :
2 Channel
Ib - Input Bias Current :
0.1 uA
Vos - Input Offset Voltage :
20 uV
Supply Voltage - Max :
33 V
Description

ADA4898-2YRDZ-R7 Audio Power Amplifier IC High Speed Operational Amplifiers High VTG Low Noise Low Distort High Spd

FEATURES

  • Ultralow noise
  • 0.9 nV/√Hz 2.4pA/√Hz 1.2nV/√Hzat10Hz
  • Ultralow distortion: −93 dBc at 500 kHz Wide supply voltage range: ±5 V to ±16 V High speed
  • −3 dB bandwidth: 65 MHz (G = +1)
  • Slew rate: 55 V/μs
  • Unity gain stable
  • Low input offset voltage: 160 μV maximum Low input offset voltage drift: 1 μV/°C
  • Low input bias current: −0.1 μA
  • Low input bias current drift: 2 nA/°C
  • Supply current: 8 mA
  • Power-down feature for single 8-lead package

APPLICATIONS

  • Instrumentation Active filters DAC buffers SAR ADC drivers Optoelectronics

GENERAL DESCRIPTION

The ADA4898-1/ADA4898-2 are ultralow noise and distortion, unity gain stable, voltage feedback op amps that are ideal for use in 16-bit and 18-bit systems with power supplies from ±5 V to
±16 V. The ADA4898-1/ADA4898-2 feature a linear, low noise input stage and internal compensation that achieves high slew rates and low noise.

With the wide supply voltage range, low offset voltage, and wide bandwidth, the ADA4898-1/ADA4898-2 are extremely versatile, and feature a cancellation circuit that reduces input bias current.

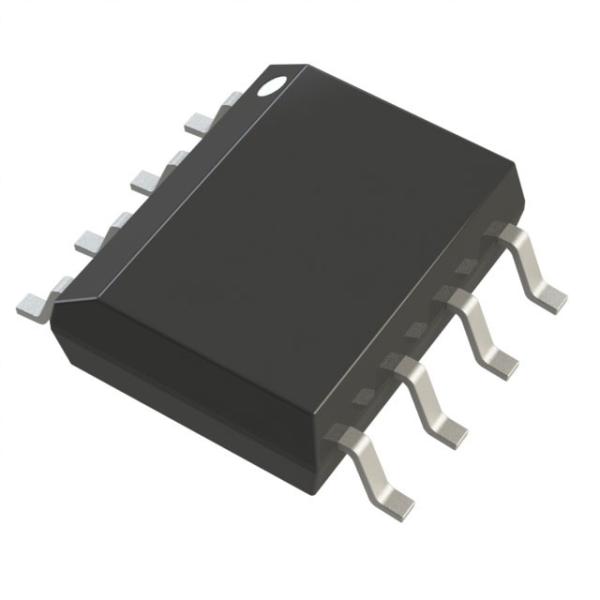

The ADA4898-1/ADA4898-2 are available in an 8-lead SOIC package that features an exposed metal paddle to improve power dissipation and heat transfer to the negative supply plane. This EPAD offers a significant thermal relief over traditional plastic packages. The ADA4898-1/ADA4898-2 are rated to work over the extended industrial temperature range of −40°C to +105°C.
