ADG3300BRUZ-REEL7 Programmable Logic ICS Voltage Levels Low VTG 1.15V-5.5V 8-CH Bidirect Logic
ADG3300BRUZ-REEL7 Programmable Logic ICS Voltage Levels Low VTG 1.15V-5.5V 8-CH Bidirect Logic
Specifications
Brand Name :
ADI
Model Number :
ADG3300BRUZ-REEL7
MOQ :
Contact us
Price :
Contact us
Payment Terms :
Paypal, Western Union, TT
Supply Ability :
50000 Pieces per Day
Delivery Time :
The goods will be shipped within 3 days once received fund
Packaging Details :
TSSOP20
Description :

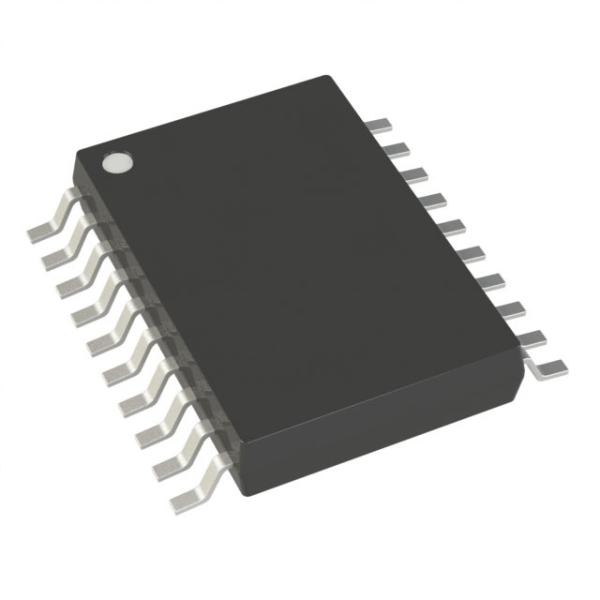

Voltage Level Translator Bidirectional 1 Circuit 8 Channel 50Mbps 20-TSSOP
Minimum Operating Temperature :
- 40 C
Maximum Operating Temperature :
+ 85 C
Supply Voltage - Min :
1.65 V
Logic Type :
Level Translator
High Level Output Current :
- 0.02 mA
Low Level Output Current :
0.02 mA
Description

ADG3300BRUZ-REEL7 Programmable Logic ICS Voltage Levels Low VTG 1.15V-5.5V 8-CH Bidirect Logic

FEATURES

  • Bidirectional level translation Operates from 1.15 V to 5.5 V Low quiescent current <1 μA No direction pin

APPLICATIONS

  • Low voltage ASIC level translation Smart card readers
  • Cell phones and cell phone cradles Portable communications devices Telecommunications equipment Network switches and routers Storage systems (SAN/NAS) Computing/server applications GPS
  • Portable POS systems Low cost serial interfaces

GENERAL DESCRIPTION

The ADG3300 is a bidirectional logic level translator that con- tains eight bidirectional channels. It can be used in multivoltage digital system applications such as data transfer between a low voltage DSP/controller and a higher voltage device. The internal architecture allows the device to perform bidirectional logic level translation without an additional signal to set the direction of the translation.

The voltage applied to VCCA sets the logic levels on the A side of the device, while VCCY sets the levels on the Y side. For proper operation, VCCA must always be less than VCCY. The VCCA-com- patible logic signals applied to the A side of the device appear as VCCY-compatible levels on the Y side. Similarly, VCCY-compatible logic levels applied to the Y side of the device appear as VCCA- compatible logic levels on the A side.

The enable pin provides three-state operation of the Y side pins. When the enable pin (EN) is pulled low, the A1 to A8 pins are internally pulled down by 6 kΩ resistors, while the Y terminals are in the high impedance state. The EN pin is referred to VCCA supply voltage and driven high for normal operation.

The ADG3300 is available in a compact 20-lead TSSOP package, and it is guaranteed to operate over the 1.15 V to 5.5 V supply voltage range and extended −40°C to +85°C temperature range.

PRODUCT HIGHLIGHTS

  1. Bidirectional level translation.

  2. Fully guaranteed over the 1.15 V to 5.5 V supply range.

  3. No direction pin.

  4. 20-lead TSSOP package.
