TLV62080DSGR TLV62084DSGR Power Path Management IC Switching Voltage Regulators 1.2A High Eff SD Converter
TLV62080DSGR TLV62084DSGR Power Path Management IC Switching Voltage Regulators 1.2A High Eff SD Converter
Specifications
Brand Name :
Ti
Model Number :
TLV62080DSGR
Input Voltage MIN :
2.5 V
Switching Frequency :
2 MHz
Minimum Operating Temperature :
- 40 C
Maximum Operating Temperature :
+ 125 C
Description

TLV62080DSGR TLV62084DSGR Power Path Management IC Switching Voltage Regulators 1.2A High Eff SD Converter

1 Features

  • DCS-ControlTM Architecture for Fast Transient Regulation

  • 2.5 to 6-V Input Voltage Range (TLV62080)

  • 2.7 to 6-V Input Voltage Range (TLV62084, TLV62084A)

  • 100% Duty Cycle for Lowest Dropout

  • Power Save Mode for Light Load Efficiency

  • Output Discharge Function

  • Power Good Output

  • Thermal Shutdown

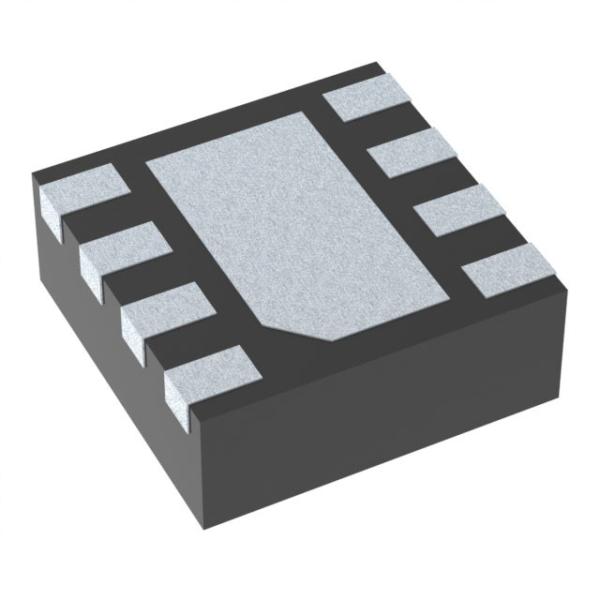

  • Available in 2 mm × 2 mm 8-Terminal WSON Package

  • For Improved Features Set, see the TPS62080

  • Create a Custom Design Using the TLV6208x

2 Applications

  • Battery-Powered Portable Devices

  • Point-of-Load Regulators

  • PC, Notebook, Server

  • Set Top Box

  • Solid State Drive (SSD), Memory Supply

3 Description

The TLV6208x family devices are small buck converters with few external components, enabling cost effective solutions. They are synchronous step- down converters with an input voltage range of 2.5 and 2.7 (2.5 V for TLV62080, 2.7 V for TLV62084x) to 6 V. The TLV6208x devices focus on high- efficiency step-down conversion over a wide output current range. At medium to heavy loads, the TLV6208x converters operate in PWM mode and automatically enter power save mode operation at light-load currents to maintain high efficiency over the entire load current range.

To address the requirements of system power rails, the internal compensation circuit allows a wide range of external output capacitor values. With the DCS- ControlTM (Direct Control with Seamless transition into Power save mode) architecture excellent load transient performance and output voltage regulation accuracy are achieved. The devices are available in 2-mm × 2-mm WSON package with Thermal Pad.

Device Information

PART NUMBER PACKAGE BODY SIZE (NOM)
TLV62080 WSON (8) 2.00 mm × 2.00 mm

TLV62084, TLV62084A
