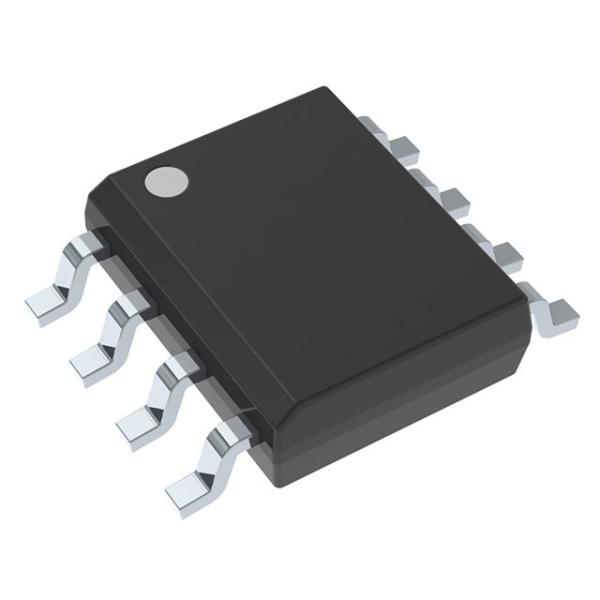

TPS54233DR Power Path Management IC Switching Voltage Regulators 28V,2A,300khZ Non- synch Buck

1 Features

• 3.5 V to 28 V Input Voltage Range

• Adjustable Output Voltage Down to 0.8 V

• Integrated 80 mΩ High Side MOSFET Supports up to 2A Continuous Output Current

• High Efficiency at Light Loads with a Pulse Skipping Eco-modeTM

• Fixed 300 kHz Switching Frequency

• Typical 1 μA Shutdown Quiescent Current

• Adjustable Slow Start Limits Inrush Currents

• Programmable UVLO Threshold

• Overvoltage Transient Protection

• Cycle by Cycle Current Limit, Frequency Fold Back and Thermal Shutdown Protection

• Available in Easy-to-Use SOIC8 Package

• Supported by WEBENCH® Software Tool

​2 Applications

• Consumer Applications such as Set-Top Boxes, CPE Equipment, LCD Displays, Peripherals, and Battery Chargers

• Industrial and Car Audio Power Supplies

• 5V, 12V and 24V Distributed Power Systems

3 Description
