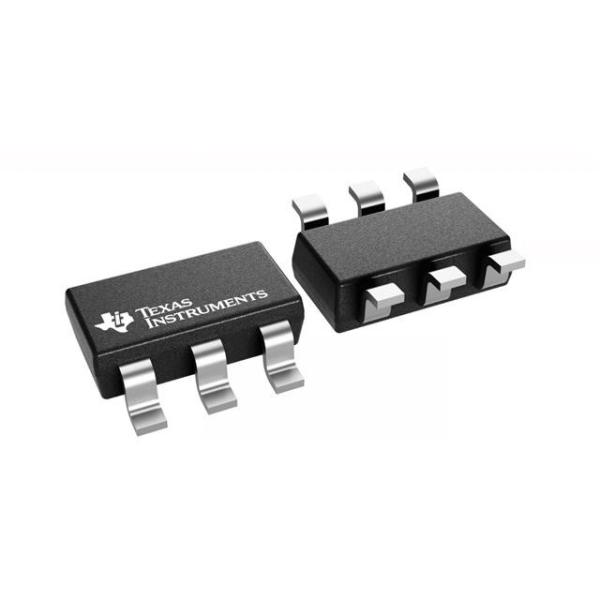

TPS563201DDCR Power Path Management IC Switching Voltage Regulators Augusta Next
TPS563201DDCR Power Path Management IC Switching Voltage Regulators Augusta Next
Specifications
Brand Name :
Ti
Model Number :
TPS563201DDCR
Price :

Output Current :
3 A
Output Voltage :
760 mV to 7 V
Package / Case :
SOT-23-Thin-6
Mounting Style :
SMD/SMT
Number of Outputs :
1 Output
Input Voltage MAX Kit :
17 V
Description

TPS563201DDCR Power Path Management IC Switching Voltage Regulators Augusta Next

1 Features

  • TPS563201 and TPS563208 3-A Converter Integrated 95-mΩ and 57-mΩ FETs

  • D-CAP2TM Mode Control with fast transient response

  • Input Voltage Range: 4.5 V to 17 V

  • Output Voltage Range: 0.76 V to 7 V

  • Pulse-skip mode (TPS563201) or Continuous Current Mode (TPS563208)

  • 580-kHz Switching Frequency

  • Low Shutdown Current Less than 10 μA

  • 2% Feedback Voltage Accuracy (25 oC)

  • Startup from Pre-Biased Output Voltage

  • Cycle-by-Cycle Overcurrent Limit

  • Hiccup-mode Overcurrent Protection

  • Non-Latch UVP and TSD Protections

  • Fixed Soft Start: 1.0 ms

2 Applications

  • Digital TV Power Supply

  • High Definition Blu-rayTM Disc Players

  • Networking Home Terminal

  • Digital Set Top Box (STB)

  • Surveillance

3 Description

The TPS563201 and TPS563208 are simple, easy-to- use, 3 A synchronous step-down converters in SOT- 23 package.

The devices are optimized to operate with minimum external component counts and also optimized to achieve low standby current.

These switch mode power supply (SMPS) devices employ D-CAP2 mode control providing a fast transient response and supporting both low- equivalent series resistance (ESR) output capacitors such as specialty polymer and ultra-low ESR ceramic capacitors with no external compensation components.

TPS563201 operates in pulse skip mode, which maintains high efficiency during light load operation. The TPS563201 and TPS563208 are available in a 6- pin 1.6-mm × 2.9-mm SOT (DDC) package, and specified from a –40°C to 125°C junction temperature.

Device Information

PART NUMBER PACKAGE BODY SIZE (NOM)
TPS563201 TPS563208 DDC (6) 1.60 mm × 2.90 mm
Product tags

step down converter ic

,

step up switching regulator

,

step down switching regulator
Send your message to this supplier
Send Now

TPS563201DDCR Power Path Management IC Switching Voltage Regulators Augusta Next

Ask Latest Price
Product Detail
Brand Name :
Ti
Model Number :
TPS563201DDCR
Price :

Output Current :
3 A
Output Voltage :
760 mV to 7 V
Package / Case :
SOT-23-Thin-6
Contact Supplier
TPS563201DDCR Power Path Management IC Switching Voltage Regulators Augusta Next

ChongMing Group (HK) Int'l Co., Ltd

Active Member
3 Years
shenzhen
Since 2008
Business Type :
Distributor/Wholesaler
Main Products :
Flash Memory IC Chip, Programmable IC Chip, Computer IC Chips
Total Annual :
5000000-7000000
Employee Number :
80~100
Certification Level :
Active Member
