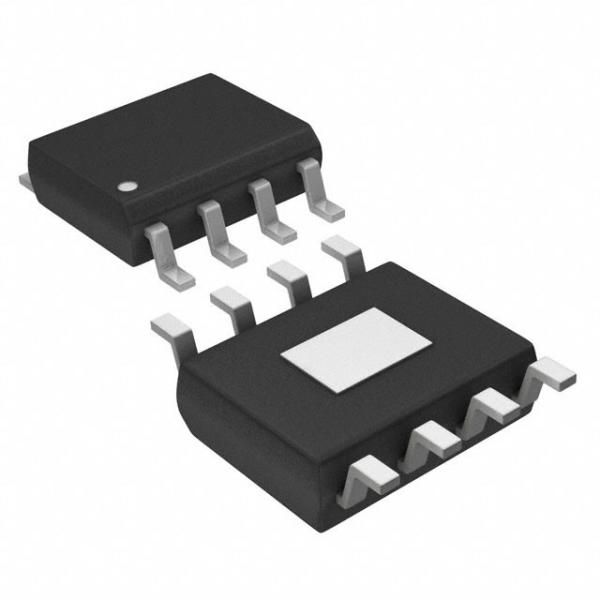

LP2996AMRE/NOPB Power Path Management IC Power Management Specialized - PMIC DDR Termination Regulator
LP2996AMRE/NOPB Power Path Management IC Power Management Specialized - PMIC DDR Termination Regulator
Specifications
Brand Name :
Ti
Model Number :
LP2996AMRE/NOPB
MOQ :
Contact us
Price :
Contact us
Payment Terms :
Paypal, Western Union, TT
Supply Ability :
50000 Pieces per Day
Delivery Time :
The goods will be shipped within 3 days once received fund
Packaging Details :
SOIC8
Description :
DDR Terminator PMIC 8-SO PowerPad
Unit Weight :
0.002924 oz
Subcategory :
PMIC - Power Management ICs
Product Type :
Power Management Specialized - PMIC
Operating Supply Current :
320 uA
Moisture Sensitive :
Yes
Brand :
Texas Instruments
Description

LP2996AMRE/NOPB Power Path Management IC Power Management Specialized - PMIC DDR Termination Regulator

1 Features

  • 1.35V Minimum VDDQ

  • Source and Sink Current

  • Low Output Voltage Offset

  • No External Resistors Required

  • Linear Topology

  • Suspend to Ram (STR) Functionality

  • Low External Component Count

  • Thermal Shutdown

  • LP2998/8Q recommended for -40°C to 125°C

2 Applications

  • DDR1, DDR2, DDR3, and DDR3L Termination Voltage

  • FPGA

  • Industrial/Medical PC

  • SSTL-2 and SSTL-3 Termination

  • HSTL Termination

3 Description

The LP2996A linear regulator is designed to meet the JEDEC SSTL-2 specifications for termination of DDR- SDRAM. The device also supports DDR2, DDR3 and DDR3L VTT bus termination with VDDQ min of 1.35V. The device contains a high-speed operational amplifier to provide excellent response to load transients. The output stage prevents shoot through while delivering 1.5A continuous current and transient peaks up to 3A in the application as required for DDR-SDRAM termination. The LP2996A also incorporates a VSENSE pin to provide superior load regulation and a VREF output as a reference for the chipset and DIMMs.

An additional feature found on the LP2996A is an active low shutdown (SD) pin that provides Suspend To RAM (STR) functionality. When SD is pulled low the VTT output will tri-state providing a high impedance output, but, VREF will remain active. A power savings advantage can be obtained in this mode through lower quiescent current.

Device Information

PART NUMBER

PACKAGE

BODY SIZE (NOM)

LP2996A

SO PowerPAD (8)

4.89 mm x 3.90 mm
