LTC1144IS8#PBF Power Path Management IC Switching Voltage Regulators Switched Cap Volt Conv 20V
LTC1144IS8#PBF Power Path Management IC Switching Voltage Regulators Switched Cap Volt Conv 20V
Specifications
Brand Name :
ADI
Model Number :
LTC1144IS8#PBF
MOQ :
Contact us
Price :
Contact us
Payment Terms :
Paypal, Western Union, TT
Supply Ability :
50000 Pieces per Day
Delivery Time :
The goods will be shipped within 3 days once received fund
Packaging Details :
SOP8
Description :
Charge Pump Switching Regulator IC Positive or Negative Fixed -Vin, 2Vin, Vin/2 1 Output 50mA 8-SOIC (0.154", 3.90mm Wid
Input Voltage MIN :
2 V
Input Voltage MAX :
18 V
Number of Outputs :
1 Output
Output Voltage :
- 18 V to - 2 V
Package / Case :
SO-8
Mounting Style :
SMD/SMT
Description

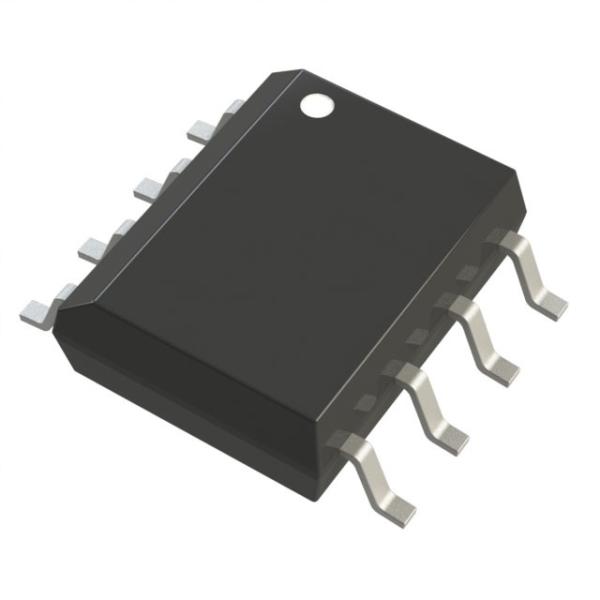

LTC1144IS8#PBF Power Path Management IC Switching Voltage Regulators Switched Cap Volt Conv 20V

FeaTures

n Wide Operating Supply Voltage Range: 2V to 18V

n Boost Pin (Pin 1) for Higher Switching Frequency

n Simple Conversion of 15V to –15V Supply
n Low Output Resistance: 120Ω Maximum

n Power Shutdown to 8μA with SHDN Pin
n Open Circuit Voltage Conversion Efficiency: 99.9% Typical
n Power Conversion Efficiency: 93% Typical

n Easy to Use

ApplicaTions

n Conversion of 15V to ±15V Supplies
n Inexpensive Negative Supplies
n Data Acquisition Systems
n High Voltage Upgrade to LTC1044 or 7660 n Voltage Division and Multiplications

n Automotive Applications
n Battery Systems with Wall Adapter/Charger

DescripTion

The LTC®1144 is a monolithic CMOS switched-capacitor voltage converter. It performs supply voltage conversion from positive to negative from an input range of 2V to 18V, resulting in complementary output voltages of –2V to –18V. Only two noncritical external capacitors are needed for the charge pump and charge reservoir functions.

The converter has an internal oscillator that can be overdriven by an external clock or slowed down when connected to a capacitor. The oscillator runs at a 10kHz frequency when unloaded. A higher frequency outside the audio band can also be obtained if the Boost Pin is tied to V+. The SHDN pin reduces supply current to 8μA and can be used to save power when the converter is not in use.

The LTC1144 contains an internal oscillator, divide-by- two, voltage level shifter, and four power MOSFETs. A special logic circuit will prevent the power N-channel switch substrate from turning on.
