ADC122S021CIMM/NOPB12 Bit Data Converter IC ADC 2 CH 50-200ksps 12B A/D Cnvtr Serial Interface
ADC122S021CIMM/NOPB12 Bit Data Converter IC ADC 2 CH 50-200ksps 12B A/D Cnvtr Serial Interface
Specifications
Brand Name :
Ti
Model Number :
ADC122S021CIMM/NOPB
MOQ :
Contact us
Price :
Contact us
Payment Terms :
Paypal, Western Union, TT
Supply Ability :
50000 Pieces per Day
Delivery Time :
The goods will be shipped within 3 days once received fund
Packaging Details :
MSOP-8
Description :
12 Bit Analog to Digital Converter 2 Input 1 SAR 8-VSSOP
Resolution :
12 bit
Number of Channels :
2 Channel
Sampling Rate :
200 kS/s
Interface Type :
Serial, 4-Wire, SPI
Reference Type :
Supply
Architecture :
SAR
Description

ADC122S021CIMM/NOPB Data Converter IC ADC 2 CH 50-200ksps 12B A/D Cnvtr

FEATURES

  • Two Input Channels
  • Variable Power Management
  • Single Power Supply with 2.7V - 5.25V Range

APPLICATIONS

  • Portable Systems
  • Remote Data Acquisition
  • Instrumentation and Control Systems

KEY SPECIFICATIONS

  • DNL +0.4 / −0.2 LSB (typ)
  • INL ± 0.35 LSB (typ)
  • SNR 72.0 dB (typ)
  • Power Consumption 2.2 mW (typ)

DESCRIPTION

The ADC122S021 is a low-power, two-channel CMOS 12-bit analog-to-digital converter with a high- speed serial interface. Unlike the conventional practice of specifying performance at a single sample rate only, the ADC122S021 is fully specified over a sample rate range of 50 ksps to 200 ksps. The converter is based on a successive-approximation register architecture with an internal track-and-hold circuit. It can be configured to accept one or two input signals at inputs IN1 and IN2.

The output serial data is straight binary, and is compatible with several standards, such as SPITM, QSPITM, MICROWIRE, and many common DSP serial interfaces.

The ADC122S021 operates with a single supply that can range from +2.7V to +5.25V. Normal power consumption using a +3V or +5V supply is 2.2 mW and 7.9 mW, respectively. The power-down feature reduces the power consumption to just 0.14 μW using a +3V supply, or 0.32 μW using a +5V supply.

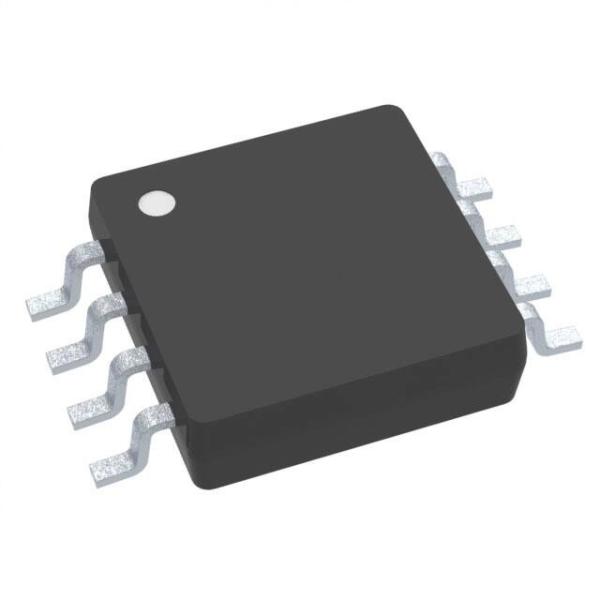

The ADC122S021 is packaged in an 8-lead VSSSOP package. Operation over the industrial temperature range of −40°C to +85°C is ensured.

Resolution

Specified for Sample Rate Range of:

50 to 200 ksps

200 to 500 ksps

500 ksps to 1 Msps

12-bit

ADC122S021

ADC122S051

ADC122S101

10-bit

ADC102S021

ADC102S051

ADC102S101

8-bit

ADC082S021

ADC082S051

ADC082S101
