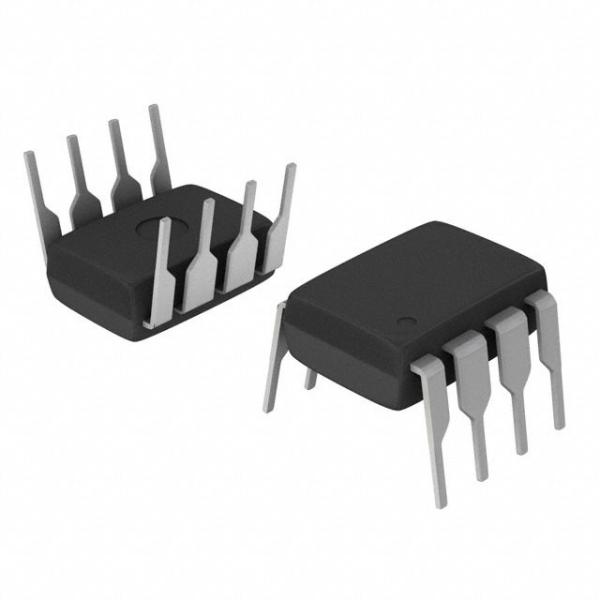

PC923L IC Chips High Speed, Gate Drive DIP 8 pin OPIC Photocoupler
PC923L IC Chips High Speed, Gate Drive DIP 8 pin OPIC Photocoupler
Specifications
Model Number :
PC923L
Certification :
new & original
Place of Origin :
original factory
MOQ :
20pcs
Price :
Negotiate
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
8000pcs
Delivery Time :
1 day
Packaging Details :
Please contact me for details
Description :
600mA Gate Driver Optical Coupling 5000Vrms 1 Channel 8-DIP
Forward current :
20 mA
Reverse voltage :
35 V
Total power dissipation :
550 mW
Isolation voltage :
5.0 kV
Operating temperature :
- 40 to +85˚C
Description

PC923L0NSZ Series

High Speed, Gate Drive DIP 8 pin OPIC Photocoupler

■ Description

PC923L0NSZ Series contains a LED optically coupled to an OPIC chip.

It is packaged in a 8 pin DIP, available in SMT gullwing lead form option.

Input-output isolation voltage(rms) is 5.0 kV, High speed response (tPHL, tPLH : MAX. 0.5 µs).

■ Features

1. 8 pin DIP package

2. Double transfer mold package (Ideal for Flow Soldering)

3. Built-in direct drive circuit for MOSFET / IGBT drive (IO1P, IO2P : 0.6 A)

4. High speed response (tPHL, tPLH : MAX. 0.5 µs)

5. Wide operating supply voltage range (VCC=15 to 30 V)

6. High noise immunity due to high instantaneous common mode rejection voltage (CMH : MIN. −15kV/µs, CML : MIN. 15kV/µs)

7. High isolation voltage between input and output (Viso(rms) : 5.0 kV)

■ Agency approvals/Compliance

1. Recognized by UL1577 (Double protection isolation), file No. E64380 (as model No. PC923L)

2. Approved by VDE (VDE0884) (as an option), file No. 87446 (as model No. PC923L)

3. Package resin : UL flammability grade (94V-0)

■ Applications

1. IGBT/MOSFET gate drive for inverter control

■ Absolute Maximum Ratings (Ta=25˚C)

Parameter Symbol Rating Unit
Input *1 Forward current IF 20 mA
Reverse voltage VR 5 V
Output Supply voltage VCC 35 V
O1 output current IO1 0.1 A
*2 O1 Peak output current IO1P 0.6 A
O2 output current IO2 0.1 A
*2 O2 Peak output current IO2P 0.6 A
O1 output voltage VO1 35 V
*3 Power dissipation PO 500 mW
*4 Total power dissipation Ptot 550 mW
*5 Isolation voltage Viso (rms) 5.0 kV
Operating temperature Topr −40 to +85 ˚C
Storage temperature Tstg −55 to +125 ˚C
*6 Soldering temperature Tsol 270 ˚C

*1 The derating factors of a absolute maximum ratings due to ambient temperature are shown in Fig.10

*2 Pulse width≤0.15µs, Duty ratio : 0.01

*3, 4 The derating factors of a absolute maximum ratings due to ambient temperature are shown in Fig.11

*5 AC for 1minute, 40 to 60 %RH, f=60Hz

*6 For 10s

■ Outline Dimensions (Unit : mm)
