TPS2557DRBR TPS2556 Ethernet Switch IC Power Distribution Prec Adj Current-Ltd Pwr-Dist Sw
TPS2557DRBR TPS2556 Ethernet Switch IC Power Distribution Prec Adj Current-Ltd Pwr-Dist Sw
Specifications
Brand Name :
Ti
Model Number :
TPS2557DRBR
Price :

Description :
Power Switch/Driver 1:1 N-Channel 5A 8-SON (3x3)
Supply Voltage - Min :
2.5 V
Supply Voltage - Max :
6.5 V
Packaging :
MouseReel
Brand :
Texas Instruments
Product Type :
Power Switch ICs - Power Distribution
Unit Weight :
0.000847 oz
Description

TPS2557DRBR TPS2556 Ethernet Switch IC Power Distribution Prec Adj Current-Ltd Pwr-Dist Sw

1 Features

  • Meets USB Current-Limiting Requirements

  • Adjustable Current Limit, 500 mA to 5 A (Typical)

  • ±6.5% Current-Limit Accuracy at 4.5 A

  • Fast Overcurrent Response: 3.5-μs (Typical)

  • 22-mΩ High-Side MOSFET

  • Operating Voltage: 2.5 V to 6.5 V

  • 2-μA Maximum Standby Supply Current

  • Built-in Soft Start

  • 15-kV and 8-kV System-Level ESD Capable

  • UL Listed: File No. E169910 and CB IEC60950-1- am2 ed2.0

2 Applications

  • USB Ports and Hubs

  • Digital TVs

  • Set-Top Boxes

  • VOIP Phones

3 Description

The TPS255x power-distribution switch is intended for applications where precision current limiting is required or heavy capacitive loads and short circuits are encountered. These devices offer a programmable current-limit threshold between 500 mA and 5 A (typical) through an external resistor. The power-switch rise and fall times are controlled to minimize current surges during turnon and turnoff.

TPS255x devices limit the output current to a safe level by switching into a constant-current mode when the output load exceeds the current-limit threshold. The FAULT logic output asserts low during overcurrent and overtemperature conditions.

Device Information

PART NUMBER PACKAGE BODY SIZE (NOM)

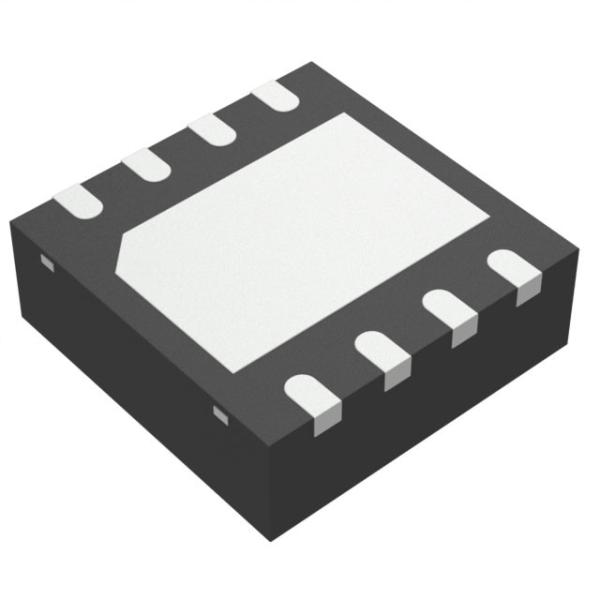

TPS2556, TPS2557 VSON (8) 3.00 mm × 3.00 mm
