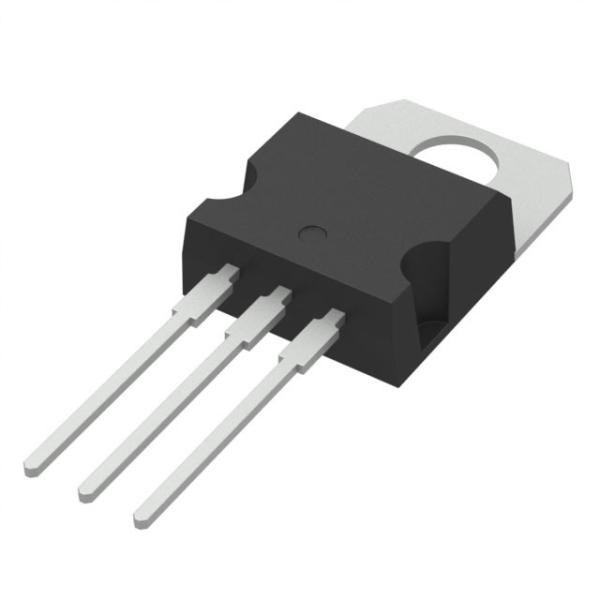

STP55NF06 Mosfet Power Transistor MOSFET N-Ch 60 Volt 55 Amp
STP55NF06 Mosfet Power Transistor MOSFET N-Ch 60 Volt 55 Amp
Specifications
Brand Name :
ST
Model Number :
STP55NF06
MOQ :
Contact us
Price :
Contact us
Payment Terms :
Paypal, Western Union, TT
Supply Ability :
50000 Pieces per Day
Delivery Time :
The goods will be shipped within 3 days once received fund
Packaging Details :
TO-220
Description :
MOSFET N-CH 60V 50A TO220AB
Rds On - Drain-Source Resistance :
18 mOhms
Vgs th - Gate-Source Threshold Voltage :
2 V
Vgs - Gate-Source Voltage :
10 V
Qg - Gate Charge :
44.5 nC
Minimum Operating Temperature :
- 55 C
Maximum Operating Temperature :
+ 175 C
Description

STP55NF06 Mosfet Power Transistor MOSFET N-Ch 60 Volt 55 Amp

Features

Order code VDSS RDS(on) max. ID
STB55NF06 60 V < 0.018 Ω 50 A
STP55NF06
STP55NF06FP

1. Refer to soa for the max allowable current value on FP-type due to Rth value

  • 100% avalanche tested
  • Exceptional dv/dt capability

Applications

  • Switching application

Description

These Power MOSFETs have been developed using STMicroelectronics’ unique STripFET process, which is specifically designed to minimize input capacitance and gate charge. This renders the devices suitable for use as primary switch in advanced high-efficiency isolated DC- DC converters for telecom and computer applications, and applications with low gate charge driving requirements.
