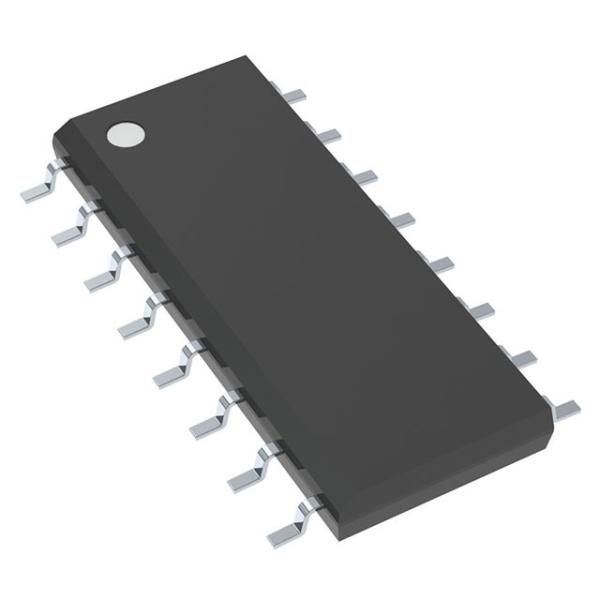

AM26C32IDR UART Interface IC RS-422 Interface IC Quad Diff Line
AM26C32IDR UART Interface IC RS-422 Interface IC Quad Diff Line
Specifications
Brand Name :
TI
Model Number :
AM26C32IDR
MOQ :
Contact us
Price :
Contact us
Payment Terms :
Paypal, Western Union, TT
Supply Ability :
50000 Pieces per Day
Delivery Time :
The goods will be shipped within 3 days once received fund
Packaging Details :
MLCC
Description :
IC RECEIVER 0/4 16SOIC
Supply Voltage - Max :
5.5 V
Supply Voltage - Min :
4.5 V
Data Rate :
10 Mb/s
Function :
Transceiver
Unit Weight :
0.004998 oz
Subcategory :
Interface ICs
Description

AM26C32IDR UART Interface IC RS-422 Interface IC Quad Diff Line

1 Features

  • Meets or Exceeds the Requirements of ANSI TIA/EIA-422-B, TIA/EIA-423-B, and ITU Recommendation V.10 and V.11

  • Low Power, ICC = 10 mA Typical

  • ±7-V Common-Mode Range With ±200-mV Sensitivity

  • Input Hysteresis: 60 mV Typical

  • tpd = 17 ns Typical

  • Operates From a Single 5-V Supply

  • 3-State Outputs

  • Input Fail-Safe Circuitry

  • Improved Replacements for AM26LS32 Device

  • Available in Q-Temp Automotive

2 Applications

  • High-Reliability Automotive Applications

  • Factory Automation

  • ATM and Cash Counters

  • Smart Grid

  • AC and Servo Motor Drives

3 Description

The AM26C32 device is a quadruple differential line receiver for balanced or unbalanced digital data transmission. The enable function is common to all four receivers and offers a choice of active-high or active-low input. The 3-state outputs permit connection directly to a bus- organized system. Fail-safe design specifies that if the inputs are open, the outputs always are high. The AM26C32 devices are manufactured using a BiCMOS process, which is a combination of bipolar and CMOS transistors. This process provides the high voltage and current of bipolar with the low power of CMOS to reduce the power consumption to about one-fifth that of the standard AM26LS32, while maintaining AC and DC performance.

Device Information

PART NUMBER

PACKAGE

BODY SIZE (NOM)

AM26C32N

PDIP (16)

19.30 mm × 6.35 mm

AM26C32NS

SO (16)

10.20 mm × 5.30 mm

AM26C32D

SOIC (16)

9.90 mm × 3.90 mm

AM26C32PW

TSSOP (16)

5.00 mm × 4.40 mm

AM26C32J

CDIP (16)

21.34 mm × 6.92 mm

AM26C32W

CFP (16)

10.16 mm × 6.73 mm

AM26C32FK

LCCC (20)

8.90 mm × 8.90 mm
