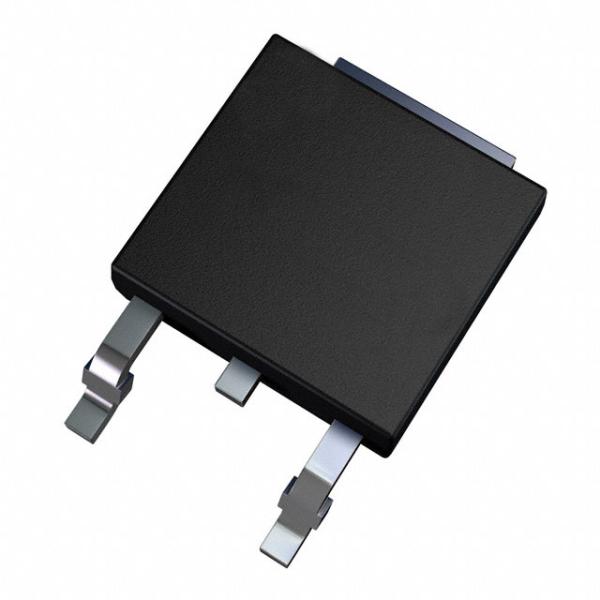

PMIC Power Management IC L78M05CDT-TR Linear Voltage Precision 500 MA Regulator
PMIC Power Management IC L78M05CDT-TR Linear Voltage Precision 500 MA Regulator
Specifications
Brand Name :
ST
Model Number :
L78M05CD
Certification :
ROHS
Place of Origin :
Original Factory
MOQ :
10pcs
Price :
Negotiate
Payment Terms :
T/T, Western Union，Paypal
Supply Ability :
100000pcs
Delivery Time :
1-3Days
Packaging Details :
BOX
Description :
Linear Voltage Regulator IC Positive Fixed 1 Output 500mA DPAK
Series :
L78M05 Linear Regulator
Application :
PMIC
Package :
TO252
Current :
0.5A
Output voltages :
5; 6; 8; 9; 10; 12; 15; 24 V
Features :
Thermal overload protection
Description

PMIC L78M05CDT-TR TO252 Linear Voltage Precision 500 mA Regulator Power Management ICs

Description


The L78M series of three-terminal positive regulators is available in TO-220, TO-220FP, DPAK and IPAK packages and with several fixed output voltages, making it useful in a wide range of applications.

These regulators can provide local on-card regulation, eliminating the distribution problems associated with single point regulation. Each type employs internal current limiting, thermal shutdown and safe area protection, resulting it essentially indestructible.

If adequate heat sinking is provided, they can deliver over 0.5 A output current. Although designed primarily as fixed voltage regulators, these devices can be used with external components to obtain adjustable voltage and currents.

Features
• Output current to 0.5 A
• Output voltages of 5; 6; 8; 9; 10; 12; 15; 24 V
• Thermal overload protection
• Short circuit protection
• Output transition SOA protection
• Output voltage tolerance: 2 % (AB and AC versions) or 4 % (C version)
• Guaranteed in extended temperature range

Applications

Power Management

5V Linear Voltage Regulators; 5V STMICROELECTRONICS Linear Voltage Regulators; - Linear Voltage Regulators; - STMICROELECTRONICS Linear Voltage Regulators; STMICROELECTRONICS Linear Voltage Regulators; - 5V Linear Voltage Regulators
