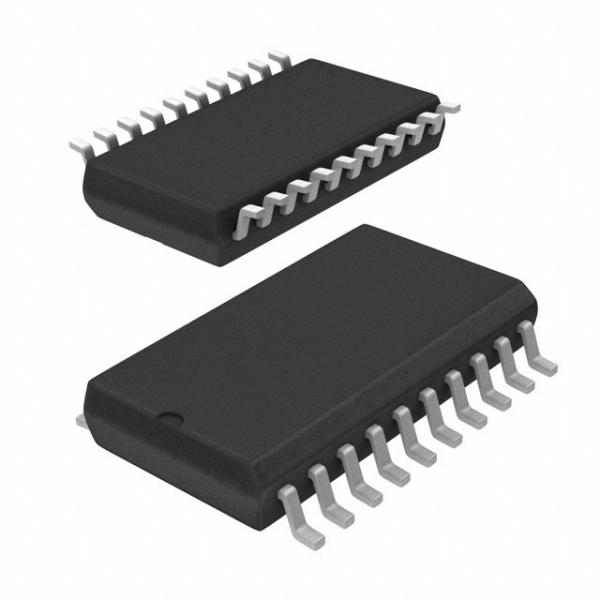

74HCT245D SOIC-20 8 Bit Transceiver with 3 State Outputs Programmable IC Chip
74HCT245D SOIC-20 8 Bit Transceiver with 3 State Outputs Programmable IC Chip
Specifications
Brand Name :
Nexperia
Model Number :
74HCT245D
Certification :
ROHS
Place of Origin :
Original Factory
MOQ :
10pcs
Price :
Negotiate
Payment Terms :
T/T, Western Union，Paypal
Supply Ability :
100000pcs
Delivery Time :
1-3Days
Packaging Details :
BOX
Description :
Transceiver, Non-Inverting 1 Element 8 Bit per Element 3-State Output 20-SOIC
Series :
74HCT245
Application :
8 bit Transceiver
Package :
SOIC-20
Voltage :
5V
Feature :
3 State outputs
Level :
CMOS Input & Output
Description

74HCT245D,653 8-bit Transceiver with 3 State outputs Programmable Logic IC SOIC-20

Description

The 74HC245; 74HCT245 is an 8-bit transceiver with 3-state outputs. The device features an output enable (OE) and send/receive (DIR) for direction control. A HIGH on OE causes the outputs to assume a high-impedance OFF-state. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC

Features

  • Complies with JEDEC standard JESD7A
  • Input levels:
    • For 74HC245: CMOS level
    • For 74HCT245: TTL level
  • Octal bidirectional bus interface
  • Non-inverting 3-state outputs
  • ESD protection:
    • HBM JESD22-A114F exceeds 2000 V
    • MM JESD22-A115-A exceeds 200 V
  • Multiple package options
  • Specified from -40 °C to +85 °C and from -40 °C to +125 °C

SO14

74HC245D

74HCT245D

SSOP14

74HC245DB

74HCT245DB

TSSOP14

74HC245PW

74HCT245PW

DHVQFN14

74HC245BQ

74HCT245BQ

SNx4HC245 8-Bit Parallel-Out Serial Shift Registers

P/N Description Voltage Circuit
74HC Series TI - 74HC Series 　 　 　
74HC00 SN74HC00 Quad 2-input AND-NOT gate 2.0～6.0 V CMOS
74HC02 SN74HC02 Quad 2-input OR-NOT gate 2.0～6.0 V CMOS
74HC04 SN74HC04 Hex inverter 2.0～6.0 V CMOS
74HC08 SN74HC08 Quad 2-input AND gate 2.0～6.0 V CMOS
74HC11 SN74HC11 Tri 3-input AND gate 2.0～6.0 V CMOS
74HC14 SN74HC14 Hex inverter 2.0～6.0 V CMOS
74HC32 SN74HC32 Quad 2-input Or gate 2.0～6.0 V CMOS
74HC74 SN74HC74 Dual D-type flip-flop with set and reset 2.0～6.0 V CMOS
74HC86 SN74HC86 Quad 2-input EXCLUSIVE-OR gate 2.0～6.0 V CMOS
74HC138 SN74HC138 Logic 3-to-8 Line Decoder Demultiplexer 2.0～6.0 V CMOS
74HC157 SN74HC157 Quad 2-input multiplexer 2.0～6.0 V CMOS
74HC164 SN74HC164 8-bit serial-out/parallel-in shift register 2.0～6.0 V CMOS
74HC165 SN74HC165 8-bit serial-in/parallel-out shift register 2.0～6.0 V CMOS
74HC240 SN74HC240 8-bit negative edge with 3-state outputs 2.0～6.0 V CMOS
74HC244 SN74HC244 8-bit positive edge with 3-state outputs 2.0～6.0 V CMOS
74HC245 SN74HC245 8-bit transceiver with 3-state outputs 2.0～6.0 V CMOS
74HC273 SN74HC273 Octal D-type flip-flop with reset 2.0～6.0 V CMOS
74HC373 SN74HC373 8-bit D-type transparent latch with 3-state outputs 2.0～6.0 V CMOS
74HC573 SN74HC573A 8-bit D-type transparent latch with 3-state outputs 2.0～6.0 V CMOS
74HC595 SN74HC595 8-bit shift register with 3-state outputs 2.0～6.0 V CMOS
74HC4060 SN74HC4060 14-stage ripple-carry counter/dividers 2.0～6.0 V CMOS
74HC4066 SN74HC4066 Quad single pole, single throw analog switch 2.0～10.0 V CMOS
