DRV8836DSSR 1.5A Li Ion Battery Charger IC , Lifepo4 Battery Charger IC Stepper Motor
DRV8836DSSR 1.5A Li Ion Battery Charger IC , Lifepo4 Battery Charger IC Stepper Motor
Specifications
Brand Name :
Ti
Model Number :
DRV8836DSSR
MOQ :
Contact us
Price :
Contact us
Payment Terms :
Paypal, Western Union, TT
Supply Ability :
50000 Pieces per Day
Delivery Time :
The goods will be shipped within 3 days once received fund
Packaging Details :
WSON12
Description :
Bipolar Motor Driver Power MOSFET Parallel 12-WSON (2x3)
Operating Supply Voltage :
2 V to 7 V
Output Current :
1.5 A
Operating Supply Current :
1.5 A
Minimum Operating Temperature :
- 40 C
Condition :
Original 100%,New and Original
Stock status :
In Stock
Description

DRV8836DSSR Power Path Management IC Controllers & Drivers 1.5A Low Vlt Stepper Motor

1 Features

  • Dual-H-Bridge Motor Driver
  • – Capable of Driving Two DC Motors or One
  • Stepper Motor
  • – Low MOSFET On-Resistance: HS+LS305mΩ
  • 1.5-A Maximum Drive Current Per H-Bridge
  • Configure Bridges Parallel for 3-A Drive Current
  • 2-V to 7-V Operating Supply Voltage
  • Flexible PWM or PHASE/ENABLE Interface
  • Low-Power Sleep Mode With 95-nA Maximum Supply Current
  • Dedicated nSLEEP Input Pin
  • Tiny 2.00-mm × 3.00-mm WSON Package

2 Applications

  • Battery-Powered:
  • – DSLR Lenses
  • – Consumer Products
  • – Toys
  • – Robotics
  • – Cameras
  • – Medical Devices

3 Description

The DRV8836 provides an integrated motor driver solution for cameras, consumer products, toys, and other low-voltage or battery-powered motion control applications. The device has two H-bridge drivers, and can drive two DC motors or one stepper motor, as well as other devices like solenoids. The output driver block for each consists of N-channel power MOSFET configured as an H-bridge to drive the motor winding. An internal charge pump generates gate drive voltages.

The DRV8836 supplies up to 1.5-A of output current per H-bridge. It operates on a power supply voltage from 2 V to 7 V.

PHASE/ENABLE and IN/IN interfaces can be selected which are compatible with industry-standard devices. A low-power sleep mode is provided which turns off all unnecessary logic to provide a very low current state.

Internal shutdown functions are provided for overcurrent protection, short-circuit protection, undervoltage lockout, and overtemperature.

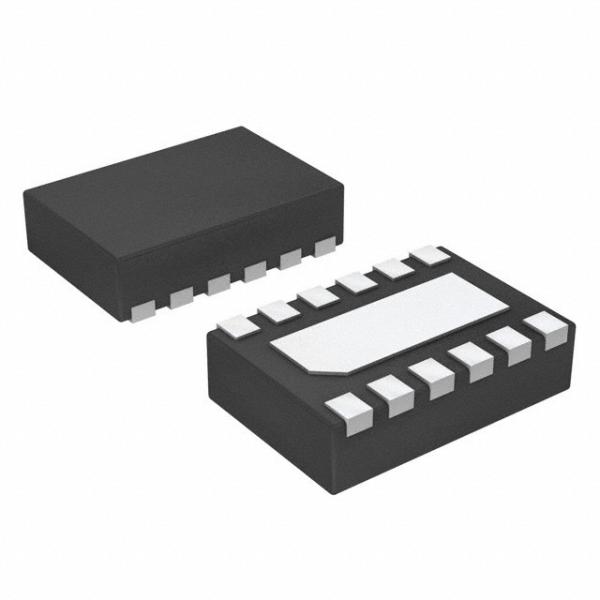

The DRV8836 is packaged in a tiny 12-pin WSON package (Eco-friendly: RoHS and no Sb/Br).

Device Information

PART NUMBER

PACKAGE

BODY SIZE (NOM)

DRV8836

WSON (12)

2.00 mm x 3.00 mm
