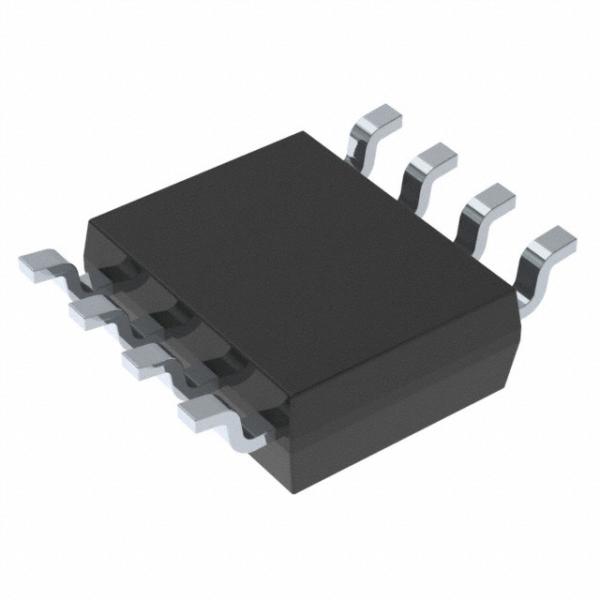

4 MHz Clock Frequency MCU Chips PIC12C509A-04I/SM High Speed CMOS EPROM / ROM Technology
4 MHz Clock Frequency MCU Chips PIC12C509A-04I/SM High Speed CMOS EPROM / ROM Technology
4 MHz Clock Frequency MCU Chips PIC12C509A-04I/SM High Speed CMOS EPROM / ROM Technology
4 MHz Clock Frequency MCU Chips PIC12C509A-04I/SM High Speed CMOS EPROM / ROM Technology
Specifications
Brand Name :
Microchip
Model Number :
PIC12C509A-04ISM
Certification :
ROHS
Place of Origin :
Original & New
MOQ :
10pcs
Price :
Negotiate
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
10000pcs
Delivery Time :
1-3Days
Packaging Details :
BOX
Description :
PIC PIC® 12C Microcontroller IC 8-Bit 4MHz 1.5KB (1K x 12) OTP 8-SOIJ
Series :
PIC12C509 8 Bit MCU Chip
D/c :
New
Feature :
8 Bit Flash Microcontrollers
Lead time :
0-3 Days
Package :
SOP8
Application :
CMOS Microcontrollers
Description

MCU Chips SOP8 PIC12C509A-04ISM 8 Bit Flash Microcontrollers 4 MHz Clock Frequency

Device

Memory

EPROM Program

ROM Program

RAM Data

EEPROM Data

PIC12C508

512 x 12

25

PIC12C508A

512 x 12

25

PIC12C509

1024 x 12

41

PIC12C509A

1024 x 12

41

PIC12CE518

512 x 12

25

16

PIC12CE519

1024 x 12

41

16

PIC12CR509A

1024 x 12

41

Peripheral Features:

• 8-bit real time clock/counter (TMR0) with 8-bit programmable prescaler

• Power-OnReset(POR)
• DeviceResetTimer(DRT)
• Watchdog Timer(WDT) with it sownon-chipRC

oscillator for reliable operation
• Programmable code-protection
• 1,000,000erase/writecycleEEPROMdata

memory
• EEPROM data retention > 40 years • Power saving SLEEP mode
• Wake-up from SLEEP on pin change • Internal weak pull-ups on I/O pins
• Internal pull-up on MCLR pin
• Selectable oscillator options:

- INTRC: Internal 4MHz RCoscillator
- EXTRC:External low-cost RC oscillator
- XT: Standard crystal/resonator
- LP: Power saving,low frequency crystal

CMOS Technology:

  • Low power,high speed CMOS EPROM/ROM technology

  • Fully static design

  • Wide operating voltage range

  • Wide temperature range:

    - Commercial: 0°C to +70°C - Industrial: -40°C to +85°C
    - Extended: -40°C to +125°C

  • Low power consumption -<2mA@5V,4MHz

-15μAtypical@3V,32KHz

- < 1 μA typical standby current

• PIC12C508 • PIC12C508A • PIC12CE518 • PIC12C509 • PIC12C509A • PIC12CE519 • PIC12CR509A
