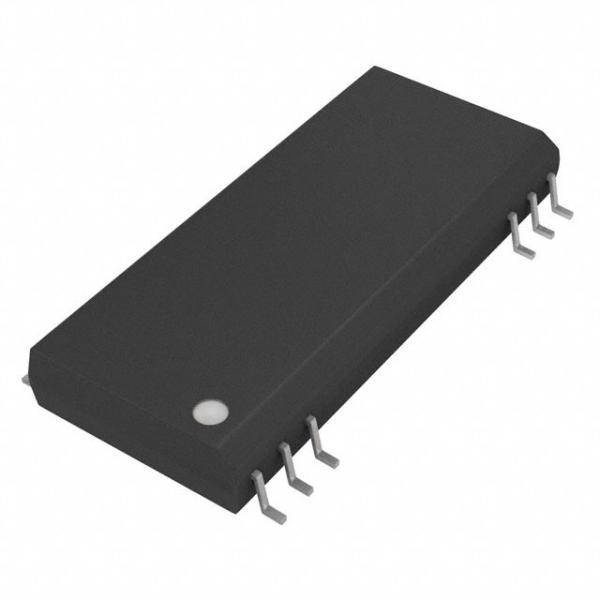

DCR010503U Microcontroller Integrated Circuit Isolated DC/DC Converters Mini 1W Iso Reg DC/DC Converter
DCR010503U Microcontroller Integrated Circuit Isolated DC/DC Converters Mini 1W Iso Reg DC/DC Converter
Specifications
Brand Name :
Ti
Model Number :
DCR010503U
MOQ :
Contact us
Price :
Contact us
Payment Terms :
Paypal, Western Union, TT
Supply Ability :
50000 Pieces per Day
Delivery Time :
The goods will be shipped within 3 days once received fund
Packaging Details :
TSSOP
Description :
Isolated Module DC DC Converter 1 Output 3.3V 300mA 4.5V - 5.5V Input
Input Voltage :
4.5 V to 5.5 V
Output Power :
1 W
Number of Outputs :
1 Output
Package / Case Size :
SO-28
Operating Temperature Range :
- 40 C to + 85 C
Packaging :
Tube
Description

DCR010503U Microcontroller Integrated Circuit Isolated DC/DC Converters Mini 1W Iso Reg DC/DC Converter

1 Features

  • 1000-Vrms Isolation (Operational)

  • UL1950 Recognized Component

  • 53 W/in3 (3.3W/cm3) Power Density

  • 10-Pin PDIP and 12-Pin SOP Packages

  • Device-to-Device Synchronization

  • Thermal Protection

  • 400-kHz Switching

  • 125 FITs at 55oC

  • ±10% Input Range

  • Short-Circuit Protected

  • 5-V, 12-V, and 24-V Inputs

  • 3.3-V and 5-V Outputs

  • High Efficiency

2 Applications

  • Point-of-Use Power Conversion

  • Digital Interface Power

  • Ground Loop Elimination

  • Power-Supply Noise Reduction

3 Description

The DCR01 family is a series of high-efficiency, input- isolated, output-regulated DC–DC converters. In addition to 1 W nominal, galvanically-isolated output power capability, this range of DC–DCs offer very low output noise, thermal protection, and high accuracy.

This combination of features and small size makes the DCR01 series of devices suitable for a wide range of applications, and is an easy-to-use solution in applications requiring signal path isolation.

Device Information

PART NUMBER

PACKAGE

BODY SIZE (NOM)

DCR01

PDIP (10)

22.86 mm × 6.61 mm

SOP (12)

17.90 mm × 7.50 mm
