SN65220DBVR Clock Timer ICS ESD Suppressors / TVS Diodes Single USB Port
SN65220DBVR Clock Timer ICS ESD Suppressors / TVS Diodes Single USB Port
Specifications
Brand Name :
Ti
Model Number :
SN65220DBVR
MOQ :
Contact us
Price :
Contact us
Payment Terms :
Paypal, Western Union, TT
Supply Ability :
50000 Pieces per Day
Delivery Time :
The goods will be shipped within 3 days once received fund
Packaging Details :
SOT23-6
Breakdown Voltage :
7 V
Working Voltage :
3.3 V
Cd - Diode Capacitance :
35 pF
Package / Case :
SOT-23-6
Minimum Operating Temperature :
- 40 C
Maximum Operating Temperature :
+ 85 C
Description

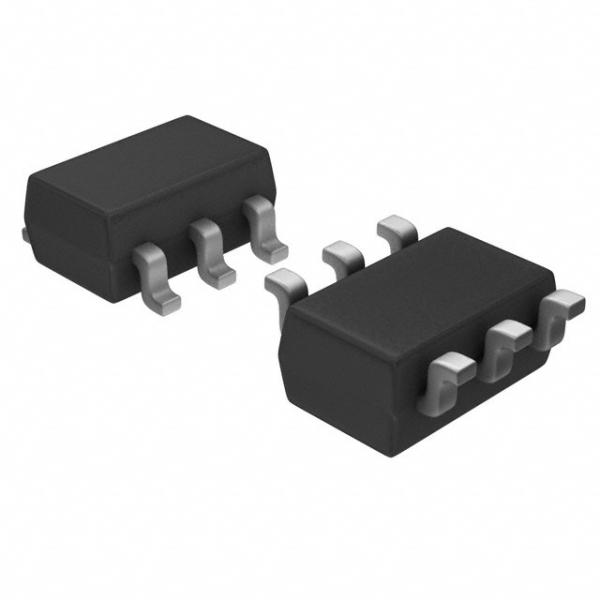

SN65220DBVR Clock Timer ICS ESD Suppressors / TVS Diodes Single USB Port

1 Features

  • Design to Protect Submicron 3-V or 5-V Circuits from Noise Transients

  • Port ESD Protection Capability Exceeds:

    • – 15-kV Human Body Model

    • – 2-kV Machine Model

  • Available in a WCSP Chip-Scale Package

  • Stand-Off Voltage: 6 V (Min)

  • Low Current Leakage: 1-μA Max at 6 V

  • Low Capacitance: 35-pF (Typ)

2 Description

The SN65220 device is a dual, and the SN65240 and SN75240 devices are quadruple, unidirectional transient voltage suppressors (TVS). These devices provide electrical noise transient protection to Universal Serial Bus (USB) low and full-speed ports. The input capacitance of 35 pF makes it unsuitable for high-speed USB 2.0 applications.

Any cabled I/O can be subjected to electrical noise transients from various sources. These noise transients can cause damage to the USB transceiver and/or the USB ASIC if they are of sufficient magnitude and duration.

The ESD performance of the SN65220, SN65240, and SN75240 devices is measured at the system level, according to IEC61000-4-2. However, system design impacts the results of these tests. To accomplish a high compliance level requires careful board design and layout techniques.

Device Information

PART NUMBER

PACKAGE

BODY SIZE (NOM)

SN65220

SOT-23 (6)

2.90 mm × 1.60 mm

DSBGA (4)

0.925 mm × 0.925 mm

SN65240 SN75240

PDIP (8)

9.09 mm × 6.35 mm

TSSOP (8)

3.00 mm × 4.40 mm

Product tags

tv tuner usb qam

,
