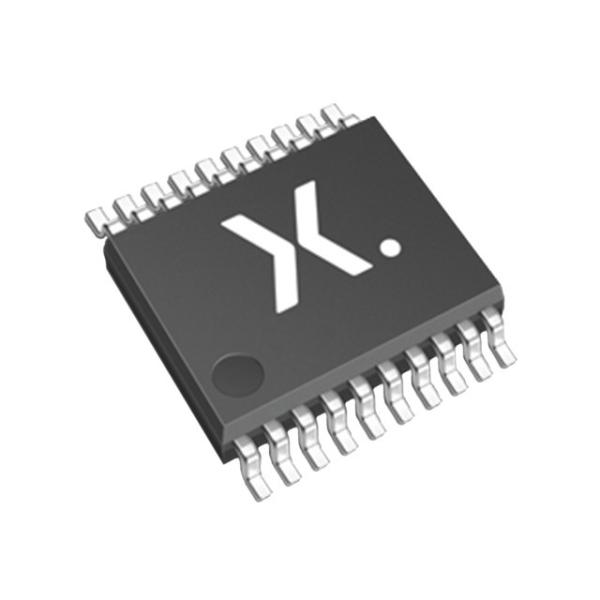

5V Programmable IC Chip Octal Bidirectional Bus Interface 74HC245PW ESD Protection
5V Programmable IC Chip Octal Bidirectional Bus Interface 74HC245PW ESD Protection
Specifications
Brand Name :
Nexperia
Model Number :
74HC245PW
Certification :
ROHS
Place of Origin :
Original Factory
MOQ :
10pcs
Price :
Negotiate
Payment Terms :
T/T, Western Union，Paypal
Supply Ability :
100000pcs
Delivery Time :
1-3Days
Packaging Details :
BOX
Description :
Transceiver, Non-Inverting 1 Element 8 Bit per Element 3-State Output 20-TSSOP
Series :
74HC245PW
Application :
8 bit Transceiver
Package :
TSSOP-20
Voltage :
5V
Feature :
3 State outputs
Level :
CMOS Input & Output
Description

8-bit Transceiver with 3 State outputs Programmable Logic IC 74HC245PW,118 TSSOP-20

Description

The 74HC245; 74HCT245 is an 8-bit transceiver with 3-state outputs. The device features an output enable (OE) and send/receive (DIR) for direction control. A HIGH on OE causes the outputs to assume a high-impedance OFF-state. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC

Features

  • Complies with JEDEC standard JESD7A
  • Input levels:
    • For 74HC245: CMOS level
    • For 74HCT245: TTL level
  • Octal bidirectional bus interface
  • Non-inverting 3-state outputs
  • ESD protection:
    • HBM JESD22-A114F exceeds 2000 V
    • MM JESD22-A115-A exceeds 200 V
  • Multiple package options
  • Specified from -40 °C to +85 °C and from -40 °C to +125 °C

SO14

74HC245D

74HCT245D

SSOP14

74HC245DB

74HCT245DB

TSSOP14

74HC245PW

74HCT245PW

DHVQFN14

74HC245BQ

74HCT245BQ

SNx4HC245 8-Bit Parallel-Out Serial Shift Registers
