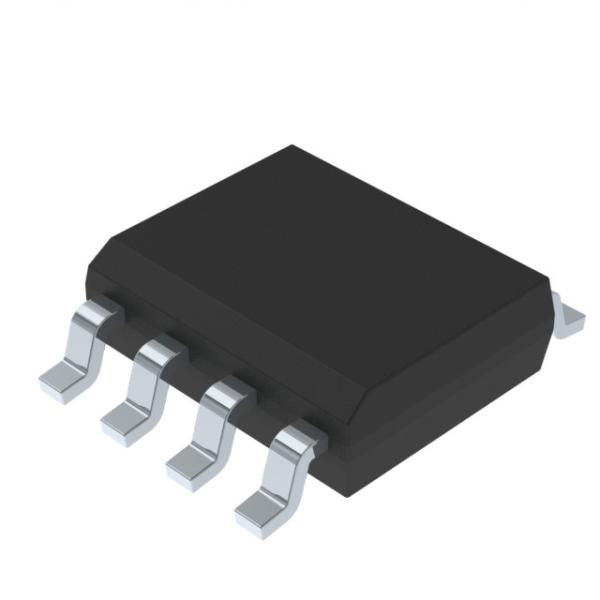

Small Size EEPROM Flash Storage Chip 1Kb 128 X 8 I²C 400kHz SOP8 M24C01-WMN6TP
Small Size EEPROM Flash Storage Chip 1Kb 128 X 8 I²C 400kHz SOP8 M24C01-WMN6TP
Specifications
Brand Name :
CYPRESS
Model Number :
M24C01-WMN6TP
Certification :
ROHS
Place of Origin :
Original Factory In stock
MOQ :
10pcs
Price :
Negotiate
Payment Terms :
T/T, Western Union，Paypal
Supply Ability :
100000pcs
Delivery Time :
1-3Days
Packaging Details :
BOX
Description :
EEPROM Memory IC 1Kbit I²C 400 kHz 900 ns 8-SOIC
Series :
EEPROM Memory IC
Voltage :
2.5V ~ 5.5V
Feature :
Enhanced ESD/Latch-Up protection
Package :
SOP8
Application :
Memory & Data Storage
Logo :
custom logo
Description

EEPROM Memory IC Chip 1Kb (128 x 8) I²C 400kHz SOP8 M24C01-WMN6TP

Description:

The M24C01(C02) is a 1(2)-Kbit I2C-compatible EEPROM (Electrically Erasable PROgrammable Memory) organized as 128 (256) × 8 bits. The M24C01/02-W can be accessed with a supply voltage from 2.5 V to 5.5 V, the M24C01/02-R can be accessed with a supply voltage from 1.8 V to 5.5 V, and the M24C02-F can be accessed either with a supply voltage from 1.7 V to 5.5 V (over the full temperature range) or with an extended supply voltage from 1.6 V to 1.7 V if the temperature is reduced to 0 °C/ 85 °C. All these devices operate with a maximum clock frequency of 400 kHz.

Standard Features

• Compatible with I2C bus modes:
– 400 kHz
– 100 kHz
• Memory array:
– 1 Kbit (128 bytes) of EEPROM
– 2 Kbit (256 bytes) of EEPROM
– Page size: 16 byte
• Single supply voltage:
– M24C01/02-W: 2.5 V to 5.5 V
– M24C01/02-R: 1.8 V to 5.5 V
– M24C02-F: 1.7 V to 5.5 V (full temperature range) and 1.6 V to 1.7 V (limited temperature range)
• Write:
– Byte Write within 5 ms
– Page Write within 5 ms
• Operating temperature range:
– from -40 °C up to +85 °C
• Random and sequential Read modes
• Write protect of the whole memory array
• Enhanced ESD/Latch-Up protection
• More than 4 million Write cycles
• More than 200-years data retention
