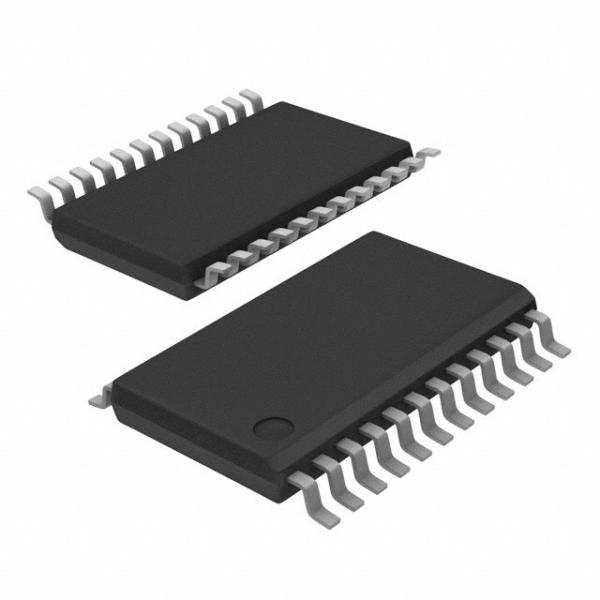

IDT5V928PGGI 24-TSSOP SMD Packaged IC Clock Gernerator Octal New And Original
IDT5V928PGGI 24-TSSOP SMD Packaged IC Clock Gernerator Octal New And Original
Specifications
Brand Name :
IDT
Model Number :
5V928PGGI
Certification :
CE/ RoHS
MOQ :
1 -5pcs
Price :
negotiation
Payment Terms :
T/T, Western Union,paypal
Supply Ability :
10,000PCS
Delivery Time :
in stock 2-3days
Packaging Details :
Reel
Description :
Clock Generator IC 160MHz 1 24-TSSOP (0.173", 4.40mm Width)
P/N :
5V928PGGI
brand :
IDT
Packaged :
SMD TSSOP
Type :
IC clock gerator octal
Description
5V928PGGI brand by IDT SMD 24-TSSOP packaged IC clock gernerator octal new and original
DESCRIPTION:
The IDT5V928 is a low-cost, low skew, low jitter, and high-performance clock synthesizer.
It has been specially designed to interface with Gigabit Ethernet (125MHz), Fibre CHannel (106.25MHz),
and OC-3 (155.52MHz) applications.
It can be programmed to provide output frequencies ranging
from 50MHz to 160MHz, with input frequencies ranging from 6.25MHz to 80MHz.
The IDT5V928 includes an internal RC filter that provides excellent jitter characteristics and eliminates the need
for external components. When using the optional crystal input, the chip accepts a 10 - 40MHz fundamental
mode crystal with a maximum equivalent series resistance of 50Ω.
FEATURES:
• 3V to 3.6V operating voltage
• 50MHz to 160MHz output frequency range
• Input from fundamental crystal oscillator or external source
• Internal PLL feedback (loading feedback output relative to
other outputs, adjusts propagation delay between REF inputs and outputs)
• Select inputs (S[1:0]) for FB divide selection (multiply ratio of 2,3, 4, 4.25, 5, 6, 6.25, and 8)
• Low jitter
• PLL bypass for testing and power-down control (S1 = H, S0 = H, powers part down <500 μ A)
• Available in TSSOP package
