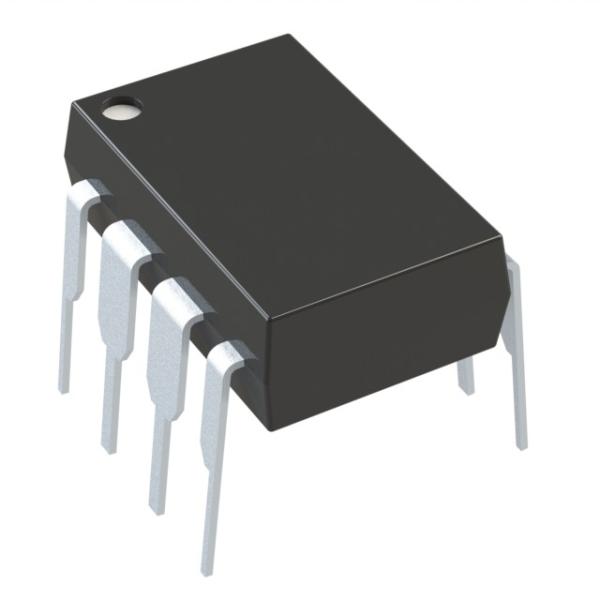

24LC64-I/P TV Memory IC 64Kb ( 8K X 8 ) I²C 400kHz 900ns 8 PDIP Eeprom Flash Memory
24LC64-I/P TV Memory IC 64Kb ( 8K X 8 ) I²C 400kHz 900ns 8 PDIP Eeprom Flash Memory
Specifications
Brand Name :
Microchip
Model Number :
24LC64-I/P
Place of Origin :
Malaysia
MOQ :
10PCS
Price :
Negotiation
Payment Terms :
T/T, Western Union,paypal
Supply Ability :
10000PCS
Delivery Time :
In stock 2-3days
Packaging Details :
TUBE
Certification :
CE/ RoHS
Description :
EEPROM Memory IC 64Kbit I²C 400 kHz 900 ns 8-PDIP
Memory Format :
EEPROM
Memory Size :
64Kb (8K x 8)
Clock Frequency :
400kHz
Write Cycle Time - Word, Page :
5ms
Access Time :
900ns
Memory Interface :
I²C
Voltage - Supply :
2.5 V ~ 5.5 V
Operating Temperature :
-40°C ~ 85°C (TA)
Description


24LC64-I/P IC Memory Chip EEPROM Memory IC 64Kb (8K x 8) I²C 400kHz 900ns 8-PDIP


Features

• Single supply with operation down to 1.8V
• Low power CMOS technology - 1 mA active current typical - 1 µA standby current (max.) (I-temp)
• Organized as 8 blocks of 8K bit (64K bit)
• 2-wire serial interface bus, I2C™ compatible
• Cascadable for up to eight devices
• Schmitt Trigger inputs for noise suppression
• Output slope control to eliminate ground bounce
• 100 kHz (24AA64) and 400 kHz (24LC64) com- patibility
• Self-timed write cycle (including auto-erase)
• Page-write buffer for up to 32 bytes
• 2 ms typical write cycle time for page-write
• Hardware write protect for entire memory
• Can be operated as a serial ROM
• Factory programming (QTP) available
• ESD protection > 4,000V
• 1,000,000 erase/write cycles
• Data retention > 200 years
• 8-lead PDIP, SOIC, TSSOP, and MSOP package

Description

The Microchip Technology Inc. 24AA64/24LC64 (24XX64*) is a 64 Kbit Electrically Erasable PROM. The device is organized as eight blocks of 1K x 8-bit memory with a 2-wire serial interface. Low voltage design permits operation down to 1.8V with standby and active currents of only 1 µA and 1 mA respectively. It has been developed for advanced, low power appli- cations such as personal communications or data acquisition. The 24XX64 also has a page-write capabil- ity for up to 32 bytes of data. Functional address lines allow up to eight devices on the same bus, for up to 512 Kbits address space. The 24XX64 is available in the standard 8-pin PDIP, surface mount SOIC, TSSOP and MSOP packages.

Product Attributes Select All
Categories Integrated Circuits (ICs)
　 Memory
Manufacturer Microchip Technology
Series -
Packaging Tube
Part Status Active
Memory Type Non-Volatile
Memory Format EEPROM
Technology EEPROM
Memory Size 64Kb (8K x 8)
Clock Frequency 400kHz
Write Cycle Time - Word, Page 5ms
Access Time 900ns
Memory Interface I²C
Voltage - Supply 2.5 V ~ 5.5 V
Operating Temperature -40°C ~ 85°C (TA)
Mounting Type Through Hole
Package / Case 8-DIP (0.300", 7.62mm)
Supplier Device Package 8-PDIP
