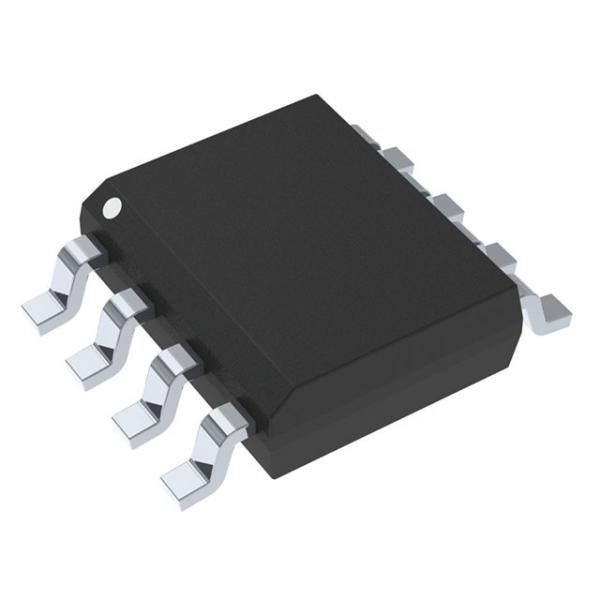

MC34063ADR2G Boost Switching Regulator Positive / Negative Adjustable 1.25V
MC34063ADR2G Boost Switching Regulator Positive / Negative Adjustable 1.25V
Specifications
Brand Name :
ON
Model Number :
MC34063ADR2G
Place of Origin :
Malaysia
MOQ :
10 PCS
Price :
Negotiation
Payment Terms :
T/T, Western Union ， ESCROW
Supply Ability :
5000PCS
Delivery Time :
STOCK
Packaging Details :
REEL
Description :
Buck, Boost Switching Regulator IC Positive or Negative Adjustable 1.25V 1 Output 1.5A (Switch) 8-SOIC (0.154", 3.90mm W
Categories :
PMIC - Voltage Regulators - DC DC Switching Regulators
Number of Outputs :
1
Voltage - Input (Min) :
3V
Voltage - Input (Max) :
40V
Voltage - Output (Min/Fixed) :
1.25V
Voltage - Output (Max) :
40V (Switch)
Current - Output :
1.5A (Switch)
Frequency - Switching :
100kHz
Description

MC34063ADR2G Buck, Boost Switching Regulator IC Positive or Negative Adjustable 1.25V 1 Output 1.5A

1.5 A, Step-Up/Down/ Inverting Switching Regulators


The MC34063A Series is a monolithic control circuit containing the primary functions required for DC−to−DC converters. These devices consist of an internal temperature compensated reference, comparator, controlled duty cycle oscillator with an active current limit circuit, driver and high current output switch. This series was specifically designed to be incorporated in Step−Down and Step−Up and Voltage−Inverting applications with a minimum number of external components. Refer to Application Notes AN920A/D and AN954/D for additional design information.


Features

• Operation from 3.0 V to 40 V Input

• Low Standby Current

• Current Limiting

• Output Switch Current to 1.5 A

• Output Voltage Adjustable

• Frequency Operation to 100 kHz

• Precision 2% Reference

• NCV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable

• These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant

Product Attributes Select All
Categories Integrated Circuits (ICs)
PMIC - Voltage Regulators - DC DC Switching Regulators
Manufacturer ON Semiconductor
Series -
Packaging Tape & Reel (TR)
Part Status Active
Function Step-Up, Step-Down
Output Configuration Positive or Negative
Topology Buck, Boost
Output Type Adjustable
Number of Outputs 1
Voltage - Input (Min) 3V
Voltage - Input (Max) 40V
Voltage - Output (Min/Fixed) 1.25V
Voltage - Output (Max) 40V (Switch)
Current - Output 1.5A (Switch)
Frequency - Switching 100kHz
Synchronous Rectifier No
Operating Temperature 0°C ~ 70°C (TA)
Mounting Type Surface Mount
Package / Case 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package 8-SOIC
